Hummel

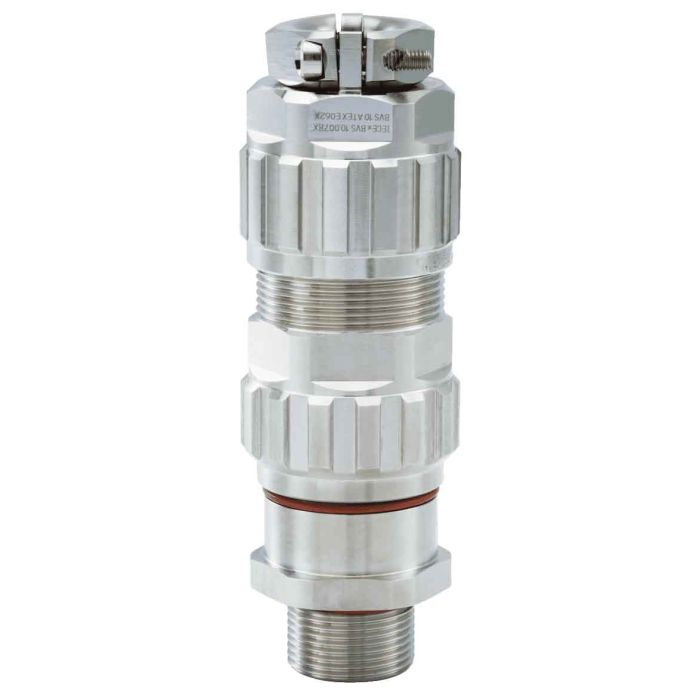

EXIOS MZ cable gland made of nickel-plated brass
EXIOS MZ cable gland made of nickel-plated brass Protection class - IP 68 – 5 bar, IP 67, IP 66. Version - . Seal - VMQ (silicone)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 16Z5250351 |
| Weight (kg) | 0.327 |
| Customs tariff number | 74199990 |
| EAN code | 4033878001264 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 91.5 |
| Certificates | CE, DNV-GL, KTL, ABS, ATEX, IECEx, EAC, CSA |
| External thread (AG) | M25 x 1,5 |
| Material seals / O-rings | VMQ (silicone) |
| Wrench size SW1 / SW2 (mm) | 30/30 |
| Protection class | IP 68 – 5 bar, IP 67, IP 66 |
| Material | Nickel-plated brass |
| Seal | VMQ (silicone) |
| Thread length (mm) | 16.0000 |
| Variant | Metric |
| Tightening torque [Nm] | 12.0000 |
| Wrench size 1 (SW1) [mm] | 30.0000 |
| Wrench size (SW) [mm] | 30.0000 |
| Ex-protection level | Class I Div 2 Groups A,B,C,D, Class II Div 1 Groups E,F,G , II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide 6 |
| Armour | Metallic armour or screen |
| A1 (mm) | 12.5 – 17.5 |
| A2 (mm) | 9 – 14 |
| Armouring Clamping Ring 1 (mm) | 0 - 0.7 |
| Armouring Clamping Ring 2 (mm) | 0.7 – 1.4 |
| Norms | RoHS |
| Gland size | 20-3 |
| Temperature Range | -60°C to +105°C |
