19461160293
19461160293
Harting

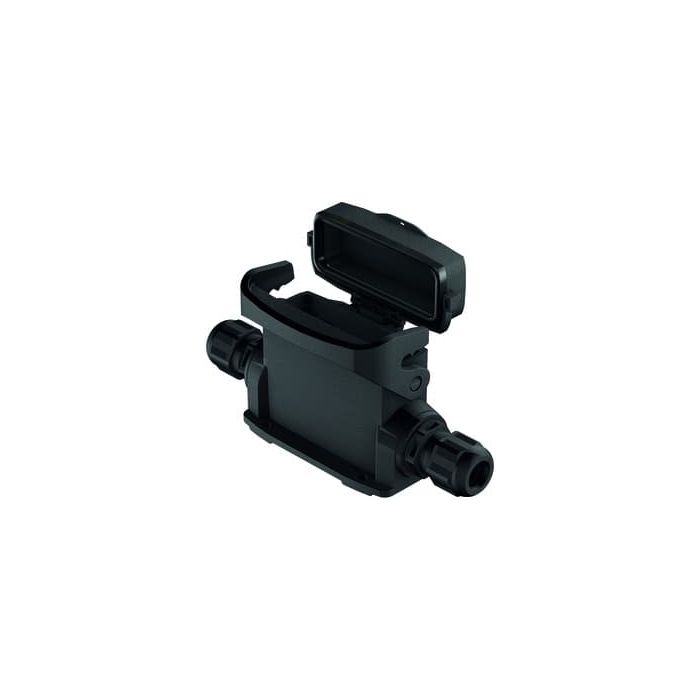

Han-Eco 16A-HSM2-M25 w. cover/cable gl.
Surface mounted housing, With thermo-plastic cover, With integrated cable gland, Size: 16 A, Single locking lever, Polyamide (PA), Fibre-glass reinforced, Side entry, 2x M25, Material (hood/housing): Polyamide (PA), Fibre-glass reinforced, RAL 9005 (jet black), Material (seal): NBR, Degree of protection: IP65
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | 429 Han-Eco |
Product Family | Han-Eco A Housings |
Product Brand Name | 19 46 116 0293 |
Approvals | CE |
Manufacturer | HARTING |
Colour | Black |
Customs tariff number | 85389099 |
Quantity Min | 1.0000 |
Quantity Interval | 1.0000 |
Country of origin | DE |
Manufacturer's Brand | Han-Eco® |
Size | 16 A |
UV Resistant | Yes |
Standards | IEC 61984 |
Material housing | Polyamide (PA) |
Degree of protection - IP (mounted) | IP65 |
Design of housing | Socket housing |
Housing colour | Black |
Interlock type | Longitudinal strap |
Shackle position | Subsection |
Size of connection thread | M25 |
Cable entry direction | lateral |
Number of cable inlets | 2.0000 |
Cable gland mounting method | metric |
Screwed cable gland ? | Yes |
Flap cover present ? | Yes |
Seal | Yes |
Fire resistance class | V0 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
