CCMT-75500
CCMT-75500
Focus Microwaves

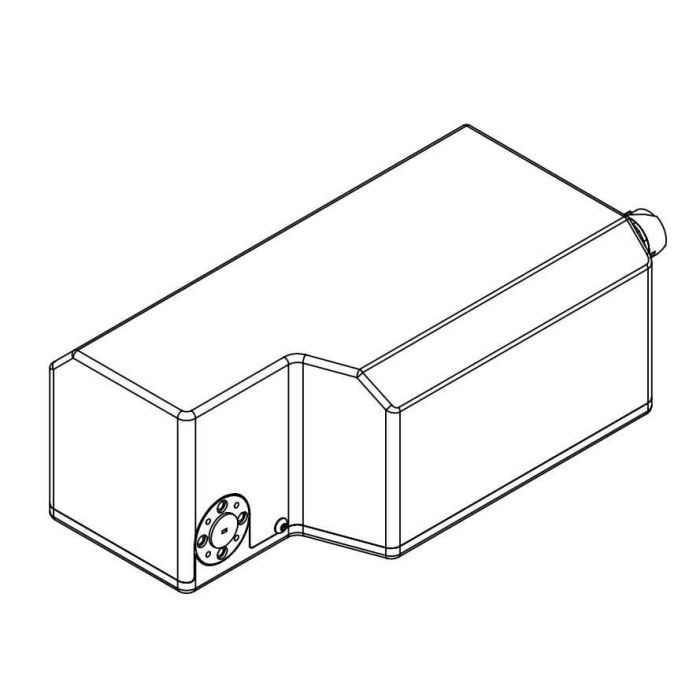

Waveguide Computer Controlled Microwave Tuner (50 - 75 GHz)
Since 1989 Focus Microwaves manufactures waveguide programmable (slide screw) impedance tuners. Starting with models from 26 to 40 GHz and now up to 170 GHz using standard WR-6, WR-10, WR-12, WR-15, WR-22 and WR-28 waveguide sections. The extreme high horizontal (2.5μm) and vertical (1.5μm) probe movement resolution allows dense impedance coverage up to the highest frequency.
Focus’ series of waveguide tuners provide high tuning range in a small footprint, making them ideal for on-wafer applications. Multiple models are available for Ka, V, E, W and D bands.
The extreme low loss RF probes used in the waveguide tuners are also designed for optimal tuning accuracy and repeatability and are free of spurious resonances. All Focus tuners are LAN controlled and include on-board im pedance synthesis firmware (iTuner) based on previous calibration.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 50 GHz |
| Maximum Frequency | 75 GHz |
| Maximum Power | 20 W |
| VSWR Min | ≥10:1 |
| Connectors | WR-15 |
| Product Type | Waveguide Tuner |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
