CE13-0240
CE13-0240
Marki Microwave

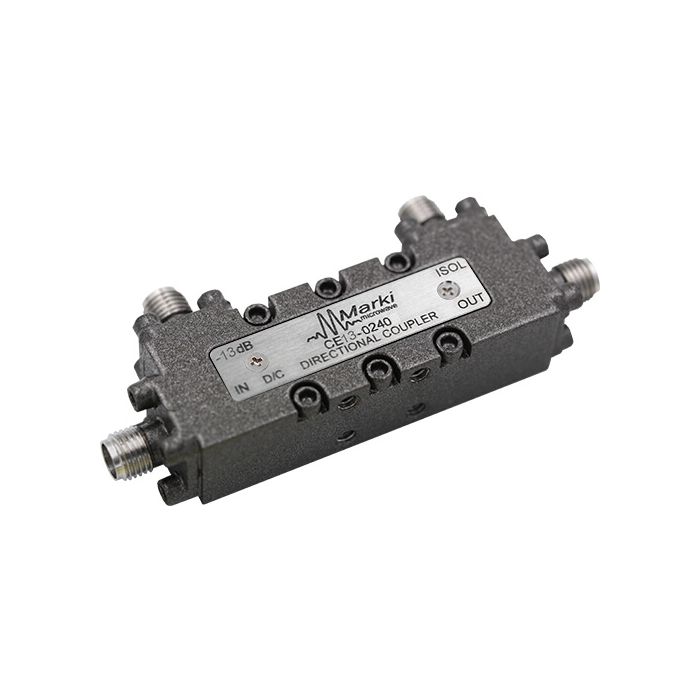

Elite Directional Coupler (2 GHz - 40 GHz)
The CE13-0240 is a next generation broadband 2GHz to 40GHz, 13dB directional coupler from the Marki Elite Series. Conductive paint is applied to all Elite Series products to reduce EMI/RFI leakage and susceptibility.
The CE13-0240 offers the best directivity, return loss, and coupling accuracy available on the market. Available as both a three port directional coupler and a four port bidirectional coupler, the CE13-0240 is an exceptional choice for broadband return loss measurements, power leveling, and signal monitoring applications.
Sophisticated neural network design techniques combined with deep circuit knowledge and triplate stripline construction allow the Marki Elite Series of Couplers to provide superior performance to all other directional couplers available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Amplitude Flatness | ±0.15 dB |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 2 GHz |
| Product Type | |
| VSWR | 1.07 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
