CE20-0220T
CE20-0220T
Marki Microwave
Elite Directional Coupler (2 GHz - 20 GHz)

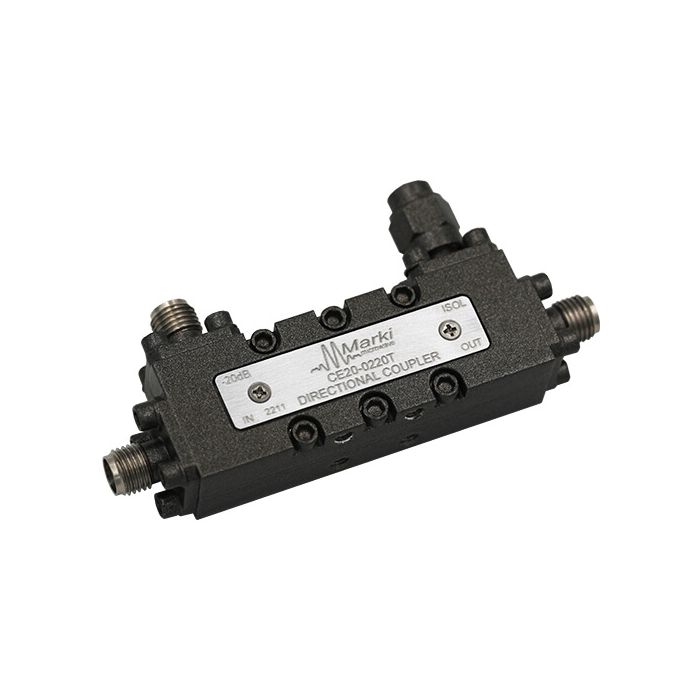

The CE20-0220T is a next generation broadband 2GHz to 20GHz, 20dB directional coupler from the Marki Elite Series. Conductive paint is applied to all Elite Series products to reduce EMI/RFI leakage and susceptibility.
The CE20-0220T offers the best directivity, return loss, and coupling accuracy available on the market. Available as a three port directional coupler with included 50Ω termination on the isolated port, the CE20-0220T is an exceptional choice for broadband return loss measurements, power leveling, and signal monitoring applications.
Sophisticated neural network design techniques combined with deep circuit knowledge and triplate stripline construction allow the Marki Elite Series of Couplers to provide superior performance to all other directional couplers available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Amplitude Flatness | ±0.1 dB |
| Maximum Frequency | 20 GHz |
| Minimum Frequency | 2 GHz |
| Product Type | |
| VSWR | 1.07 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
