Harting

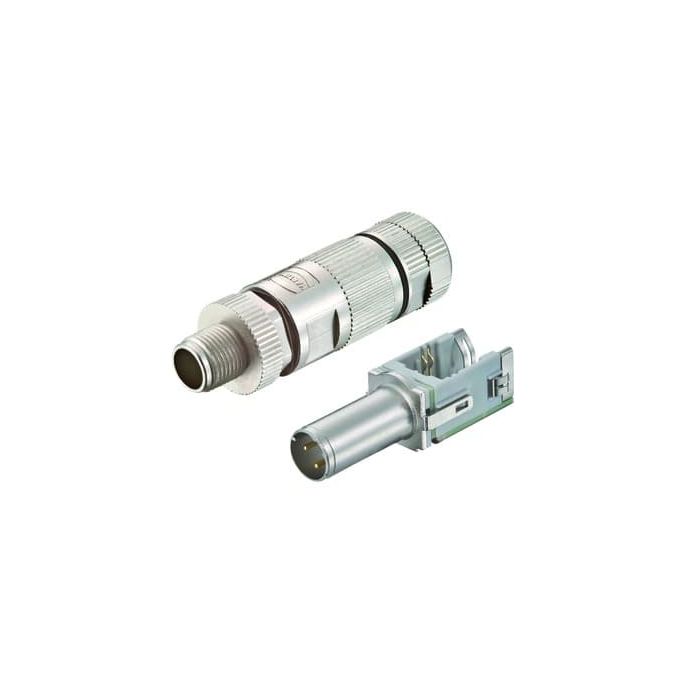

preLink M12 plug D-coded 4-pole Cat.5
Cable connector, Male, D-coding, preLink® IDC insulation displacement termination, Contacts: 4, Conductor cross-section: 0.1...0.12 mm2, 0.22...0.32 mm2, Screw mounted housing, Zinc die-cast, Screw locking, Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | preLink components IP 65/67 |
| Product Family | preLink components |
| Product Brand Name | 20 82 005 0001 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CZ |
| Manufacturer's Brand | preLink® |
| Material housing | Zink |
| Material housing surface | nickel-plated |
| Cable diameter (mm) | 5…9.5 |
| Insertion cycles minimum | 500.0000 |
| Degree of protection - IP (mounted) | IP65 |
| Maximum connectable conductor cross section (mm2) | 0.12 |
| Minimum connectable conductor cross section (mm2) | 0.1 |
| Conductor connection method | preLink® IDC insulation displacement termination |
| Design of housing | Feed-through header |
| Interlock type | Threaded joint |
| Screened ? | Yes |
| Standards | EN 45545-2 |
| Body size | M12 |
| Housing type | Cable |
| Housing material | Zink |
| Housing surface material | Nickel |
