20820051214
20820051214
Harting

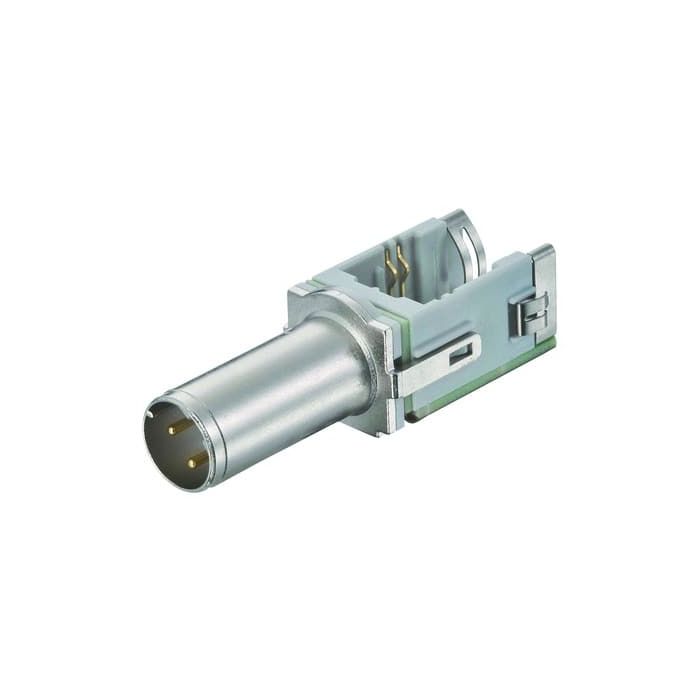

preLink M12 plug-in module 4-pole Cat.5
Connectors, preLink® IDC insulation displacement termination, Male, Zinc die-cast, nickel-plated, Contacts: 4, Conductor cross-section: 0.1...0.12 mm2, 0.22...0.32 mm2
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | preLink components IP 65/67 |
| Product Family | preLink components |
| Product Brand Name | 20 82 005 1214 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | LV |
| Manufacturer's Brand | preLink® |
| Number of poles | 4.0000 |
| Insertion cycles minimum | 500.0000 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 0.12 |
| Minimum connectable conductor cross section (mm2) | 0.1 |
| Material of insulation | Zinc die-cast, nickel-plated |
| Conductor connection method | preLink® IDC insulation displacement termination |
| Conductor cross-section mm2 | 0.1…0.12 |
| Body size | M12 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
