02011601105
02011601105
Harting

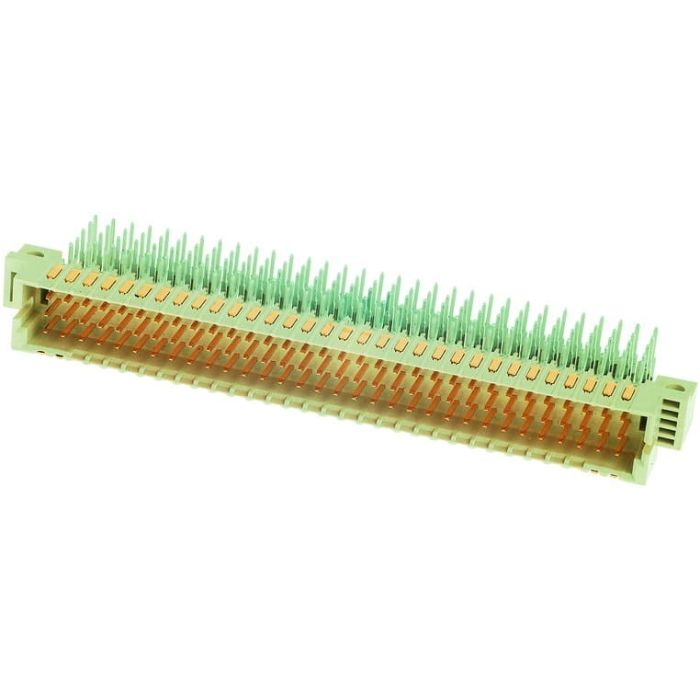

DIN-Signal harbus64-160MR-3,0C1-1-V4SnPb
Connectors, Male connector, Reflow soldering termination (THR), Wave soldering termination, Rated current:1 A, Contacts: 160, Angled, Copper alloy, Gold plated, Mating side, Sn over Ni, Termination side, Performance level: 1, AU 50, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Liquid crystal polymer (LCP), Beige
In stock
| Attribute | Value |
|---|---|
| Product Segment | har-bus 64 male |
| Product Family | DIN Signal |
| Product Brand Name | 02 01 160 1105 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100 |
| Quantity Interval | 100 |
| Country of origin | DE |
| Number of poles | 160 |
| Material contact surface | Gold |
| Material of insulation | Liquid crystal polymer |
| Direction mating face | turned |
| Coating plug contact area | Gold (au) |
| Number of rows | 5 |
| Type of PCB contacting | THR connection |
| Grid dimensions 1 (mm) | 2.54 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | With fixing flange |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1 |
| Temperature Range | -55 to 125 Deg. C |
