CS1004 + CS1005
CS1004 + CS1005
Cleverscope
Digital probe pod.

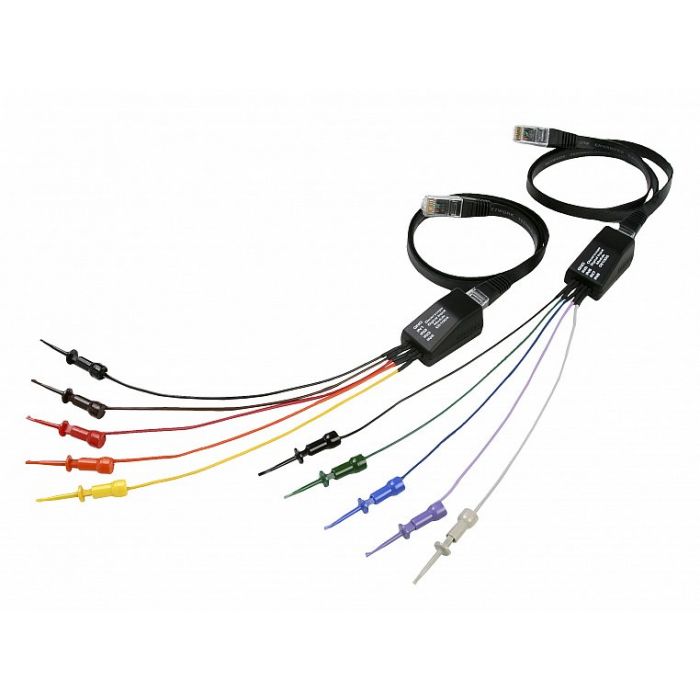

The CS1004 + CS1005 Digital Probe pod is used to probe up to 8 digital signals. Eight signal and two ground probe clips are included.
45 mm Ezy™ Hook, spring probe, 0.4mm probe width
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Bandwidth | DC to 100 MHz |
| Input Resistance | 100 Ω |
| Input Capacitance | Approx 16 pF |
| Attenuation Ratio | 1:4 |
| Number of Signal Inputs | 8 |
| Working Voltage | -16V to + 20V |
| Cable Length | 1 m from Cleverscope Acquisition Unit to Pod, 150mm from Pod to probe clip |
| Rise Time | 2 ns |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
