CS1006 + CS1007
CS1006 + CS1007
Cleverscope
Isolated Digital Probe Pods

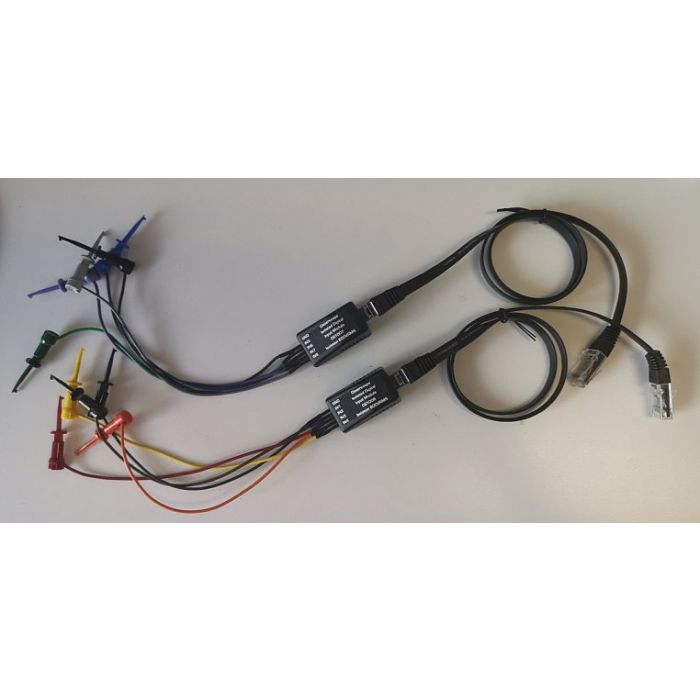

The CS1006 + CS1007 Digital Probe pod is used to probe up to 8 digital signals. Eight signal and two ground probe clips are included. There is no isolation between the inputs in each group of 4. They only work with the CS448 as a 5V supply is required.
45 mm Ezy™ Hook, spring probe, 0.4mm probe width
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Bandwidth | DC to 200 MHz |
| Isolation Capacitance | <5 pF |
| Maximum Data Rate | 100 Mbps |
| Propagation Delay | 13ns compensated for in the CS448 |
| Number of Signal Inputs | 8 |
| Input Threshold | 2.3V rising, 0.9V falling |
| Isolation | 1kV |
| Cable Length | 1 m from Cleverscope Acquisition Unit to Pod, 150mm from Pod to probe clip |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
