Cleverscope
Vsat probe

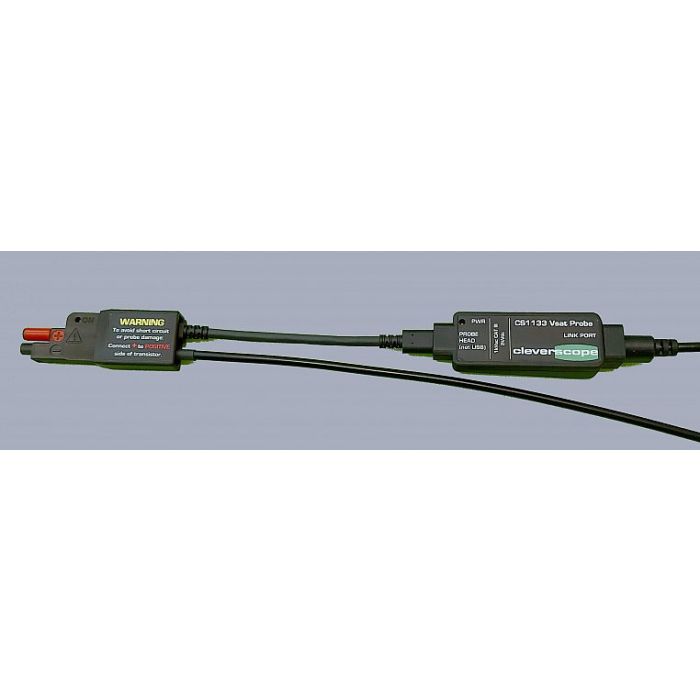

The CS1133 VSAT probe is used to measure the saturation voltage of a switching transistor. It uses a 30mA high
compliance current source to measure the transistor forward voltage while the voltage across the device is less than
the clip level. The clip level can be set to 3 ranges; approximately 15V, 1.5V and 150mV. Above the clip level the VSAT
probe is disconnected from the Unit Under Test (UUT). It is expected that the UUT will have a good deal more than
30mA flowing through it so this small additional current will not significantly change the saturation voltage. The
CS1110 is designed to work into a 50 ohm load. The CS1133 is rated for operation over the input voltage range of 0V
to +3.3kV. It can also withstand negative overshoot on the UUT down to -100V for short term transients.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Current Source Output | 30mA |
| Recovery After Falling Edge |
50ns on 15V range 100ns on 1V5 range |
| Supply Voltage | 5V |
| Supply Current - UUT Input Open | 300mA |
| Supply Current UUT - Input Shorted | 380mA |
| Max Negative Overshoot | -100V |
| Isolation Working Voltage | 1kVAC CAT III or 2kVDC |
| Clip Levels |
15V range: 15V ± 1V 1V5 range: 1.5V ± 100mV 150mV range:150mV ± 50mV |
| Gain Accuracy | < ± 1% |
| Rise and Fall Times | <10ns |
| Probe Head Size | 70x30x12mm |
| Isolator Size | 94x30x20mm |
| Input Voltage Range | 0-3300V |
| Included Accessories | SMA-BNC cable with 50ohm termination, 1m LINK PORT cable, Mini DIN8, 1m Probe Head – Isolator cable, 150mm (USB-C) 0.64mm square sockets, 10pcs |
