Cleverscope Windows Application Software
Cleverscope Windows Application Software
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|

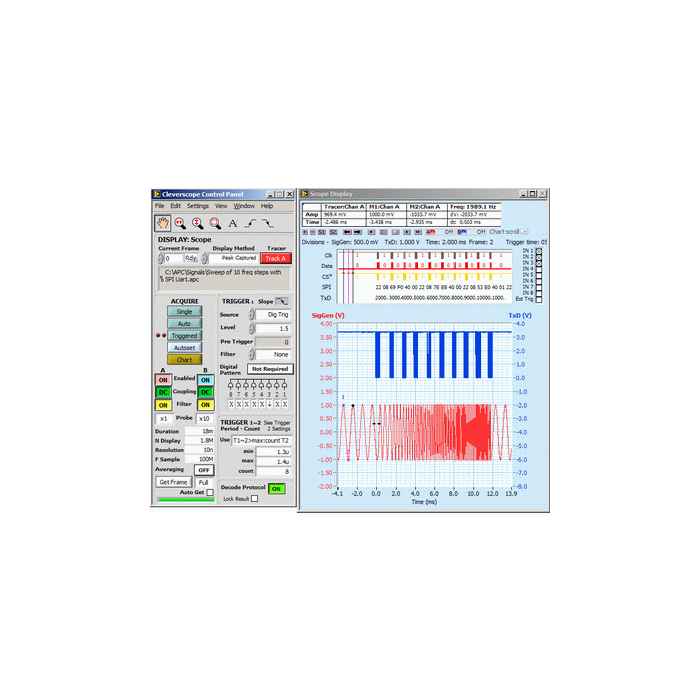

| Displays | Simultaneous Scope, Tracking, Spectrum, Signal Information, Maths, XY, Control Panel, Protocol and Trigger setup Displays |
| Linking | All the graphs can be linked to the current tracer position for tracking zoom, maths and spectrum displays. |
| Graph Features | All graphs include variable persistence, tracer, markers, annotations, user defined colours and units, graph size and location. The spectrum graph has log/linear axis. |
| Copy and Paste | All graphs, and signal information can be copy/pasted into Windows documents. |
| All displays can be printed | |
| File | Signal data can be saved and opened as cleverscope, text or binary. The cleverscope format includes the complete display setup. |
| File Actions | Files can be saved or opened manually, on a trigger, after a period of time, or initiated by Maths. |
| Triggers | Define dual mixed signal triggers -filter, amplitude, slope, period between triggers, and trigger count. |
| Capture Types | One shot triggered (-20 - 20 secs), continuous streaming (up to 100 G samples) |
| Signal Information | Display DC, RMS, Max, Min, Pk-pk, Std Dev, Period, Frequency, Pulse Length, Duty Cycle, Harmonics, Sinad, THD and HD2-3. Log to a text or Excel file. Link live to Excel. |
| Spectrum | Select span and resolution. Apply averaging. Log or linear. Select windowing function and spectrum type (RMS, power, power density, gain/phase). |
| FRA | Use the Frequency Response Analyzer (FRA) panel to control capture and plotting of RMS, Gain/Phase, Impedance/Phase, Capacitance, ESR, Inductance and Quality Factor vs frequency. You can use FRA with live power supplies to measure power supply response and stability, ground and power plane impedance, and PSRR. Using persistence you can create a family of response curves for changing load or voltage. |
| Maths | 10 arbitrary symbolic equations, large number of functions and processes, including filtering, integration, signal processing and signal generator control, Matlab live connect and file save. |
| Protocol | Setup and decode SPI, I2C, Uart and Bus signals. |
| Charting | Stream to disk at up to 1.5 MSPS continuously. Pan and zoom anywhere. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
