CS700A
CS700A
Cleverscope
Signal Generator (0-10MHz, Sine, Square, Triangle)

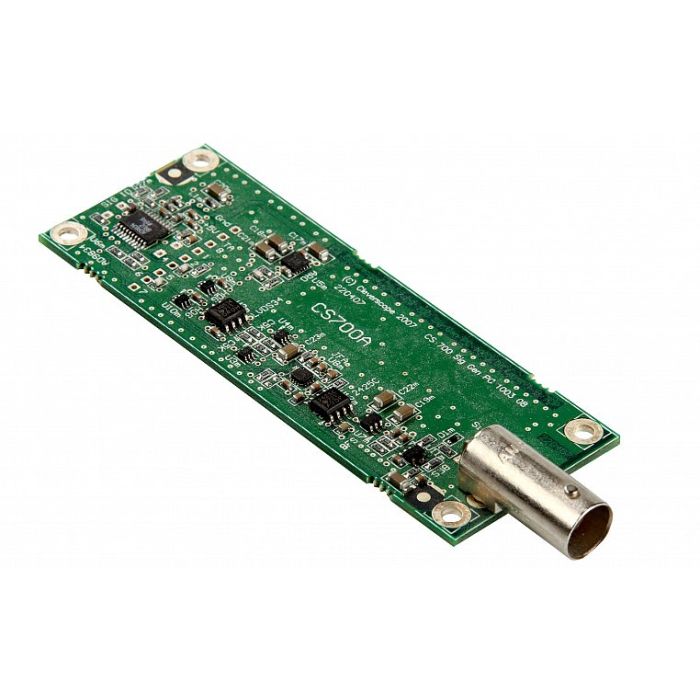

The CS700A Signal Generator is a plug-in module for the CS328A and CS320A Oscilloscopes. If you order at the same time as a CS328A or CS320A, the module will be factory fitted.
The CS700 and CS700A have similar specifications but will only work in the relevant systems. "A" versions have serial numbers starting from 4000
The CS700A Signal generator generates sine, square and triangle output waveforms. The amplitude may be varied between 0 and 5V pk-pk, in 10mV steps. The offset maybe varied from –4 to +4V in 10 mV steps. The generator can be FSK and PSK modulated, and Frequency swept. The sweep may be synchronized with the Spectrum Analyser to carry out transfer response measurement. Two of the digital inputs may be allocated to switch between either of the two frequencies or two phases.
The CS700 and CS700A have similar specifications but will only work in the relevant systems. "A" versions have serial numbers starting from 4000
The CS700A Signal generator generates sine, square and triangle output waveforms. The amplitude may be varied between 0 and 5V pk-pk, in 10mV steps. The offset maybe varied from –4 to +4V in 10 mV steps. The generator can be FSK and PSK modulated, and Frequency swept. The sweep may be synchronized with the Spectrum Analyser to carry out transfer response measurement. Two of the digital inputs may be allocated to switch between either of the two frequencies or two phases.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Function | Generate Sine, Square or Triangle output signals |
| Absolute Accuracy | 50 ppm in 1 year, 0-40 deg C |
| Frequency Range | Sine, Square: 0.003 Hz – 10 MHz Triangle: 0.003Hz – 1 MHz |
| Protection | Short Circuit Protected ± 10V peak overdrive < 1 min |
| Amplitude Accuracy | ± 2% |
| Resolution | 0.003Hz (<1KHz) 0.2 Hz (>1kHz) |
| Output Impedance | 50 ohm |
| Generation Method | Direct Digital Synthesis |
| Output Sampling Rate | 50 MSa/sec |
| Output Voltage Range | 100mV – 5V p-p including DC offset |
| Output Voltage Resolution | 10 mV |
| Output Voltage Offset Range | -4 to +4V |
| Output Voltage Offset Resolution | 10 mV |
| Frequency Shift Range | Any two frequencies in range 0.2Hz – 10 MHz |
| Signal to Noise Ratio | -60 dBc typical |
| Total Harmonic Distortion | 0 – 1 MHz : < -65 dBc > 1 MHz: < -35 dBc |
| Amplitude Flatness | ± 0.2 dB |
| Square Wave Rise Fall Times | < 12 ns |
| Phase Shift Range | Any phase difference between 0 – 360 degrees |
