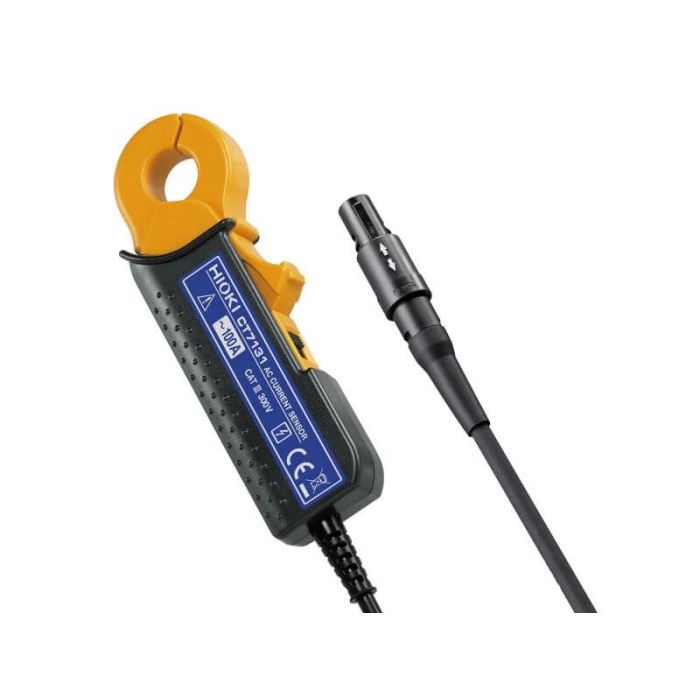

CT7131

Hioki

AC Current Probe

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

AC Current Probe

Key Features

Measurement Range: 100 A AC
Frequency Range: 40 Hz to 5 kHz
Basic Accuracy: ±0.3% rdg.±0.02% f.s.
Maximum Conductor Diameter: 15 mm
Operating Temperature: -10°C to 50°C
Cable Length: 2.5 m
Safety Category: 300 V CAT III
Output Connector Type: Hioki PL14 connector

The CT7131 AC Current Sensor is a versatile tool designed for accurate AC current measurements in various industrial applications. With a measurement range of up to 100 A, it provides reliable and precise performance for power analysis and current monitoring. Its compact design ensures easy handling and integration with Hioki measuring instruments, making it ideal for professionals seeking dependable measurement solutions.
