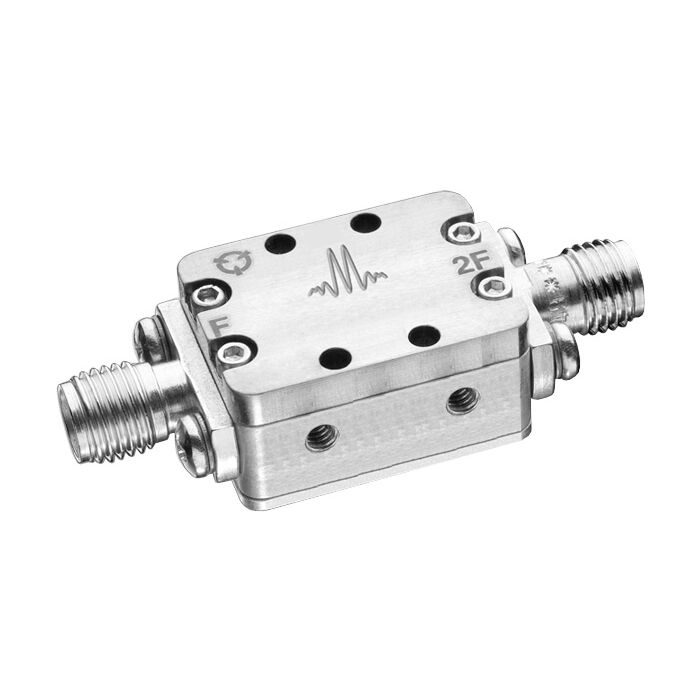

D-0308

D-0308

Marki Microwave

Frequency Doublers

Marki doublers offer excellent conversion efficiency across broad bandwidths, with good fundamental and odd harmonic suppression. They are constructed using silicon Schottky diodes, ideal for low phase noise applications. As with all multipliers and mixers, it is important to drive doublers with the recommended drive level.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Download The Marki Microwave Product Brochure

View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.

More Information
Attribute Value
RoHS N
Key Features
  • Input 3.0 to 8.0 GHz
  • Output 6.0 to 16.0 GHz
  • 9.0 dB Typical Conversion Loss
  • 30 dBc Typical 3rd Harmonic Suppression
  • Two Input Levels Available
  • Multi-Octave Band Input
Conversion Loss (dB) 9
Minimum Input (GHz) 3
Maximum Input (GHz) 8
Minimum Output (GHz) 6
Suppression F (dBc) 25
Suppression 3F (dBc) 30
Maximum Output (GHz) 16
More Information
Attribute Value
Data Sheet Click here to view
