DAQ973A

This product is also available in our rental inventory.

Find this product in our Keysight Rental Inventory.

Take a look at how APC can help you procure some of the most advanced Keysight test and measurement equipment whilst saving you time and money. APC's rental option gives you faster access to the equipment that you need while keeping your spending at a minimum.

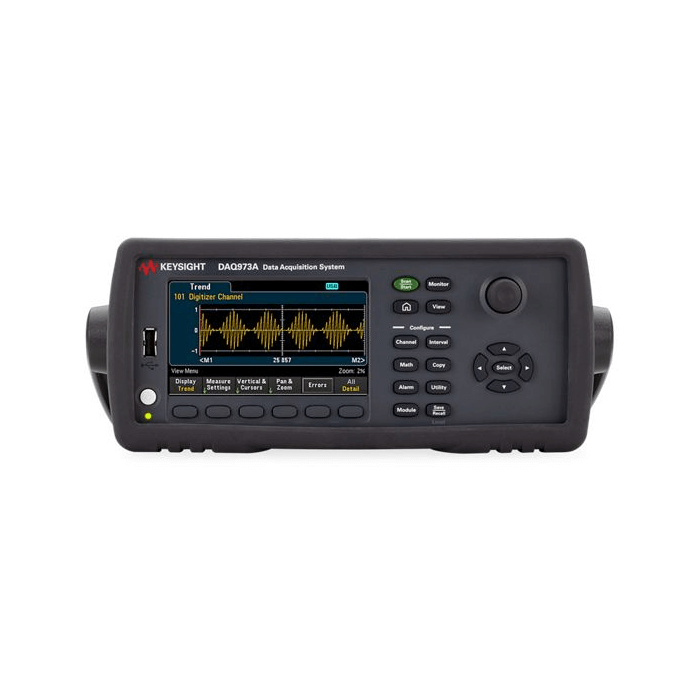

Get the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 9 plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.

• Advanced 6½ digit internal DMM with improved accuracy and faster measurement speed
• Ability to measure very low current ranges (1 μA DC and 100 μA AC) and higher resistance range (1000 MΩ)
• New auto-calibration that compensates for internal drifts caused by time and temperature changes
• 3497XA compatible, program and configuration

PLUS

All modules have been updated to have improved switching speeds and accuracies

• NEW DAQM900A solid state multiplexer with scan rate speed of up to 450 channels/sec
• NEW DAQM909A 24-bit digitizer module providing 4 channels, simultaneous sampling, differential inputs, and sample rates up to 800 kSa/s

Plug-in module product comparison

Keysight’s BenchVue DAQ Control and Analysis app is available for use with the DAQ970A, DAQ973A, 34970A, 34972A and 34980A. BenchVue gives you an intuitive interface for test configuration and real-time data display and analysis. Setup and make measurements quickly, export data or log and view real-time measurements with a variety of display types to interpret your data faster. BenchVue Software also supports many other Keysight instruments giving you a single interface for Keysight’s most popular instruments.
