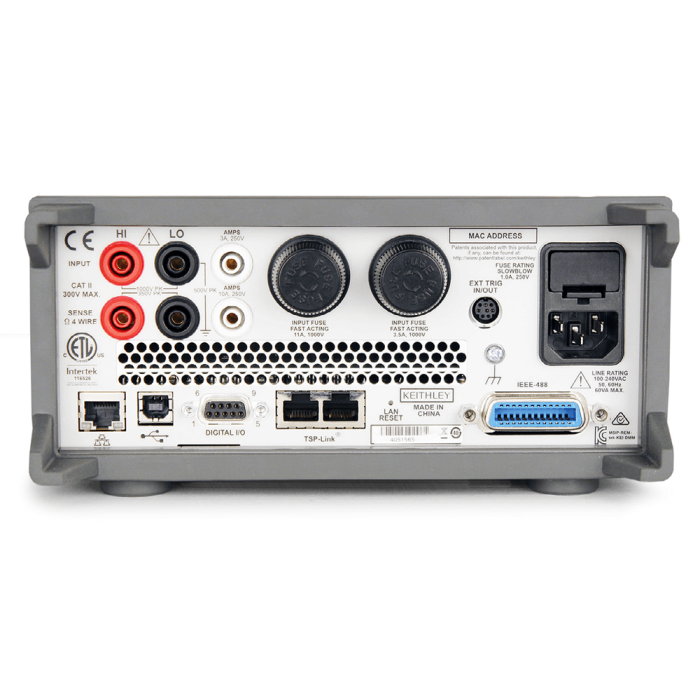

Keithley DMM7510-RACK Digital Multimeter

DMM7510-RACK

Keithley Instruments

Keithley Graphical Sampling Multimeter (DMM) 7.5 Digit (With No Handle)

Skip to the beginning of the images gallery

The DMM7510-RACK combines all the advantages of a precision digital multimeter; a graphical touchscreen display, a high-speed and high-resolution digitiser to create an industry-first graphical sampling multimeter. The digitiser gives the DMM7510-RACK unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and ease of use offers unparalleled insight into your test results.

Wide dynamic range for drain current consumption profiling of IoT products

The Keithley DMM7510-RACK digitiser can measure the current drain in all the IoT device’s operating states. Capture µA sleep mode currents and transmit currents up to 1A with the combination of sensitive and fast current measurements from the high-resolution, high-speed digitiser.

Sample current drain wave shapes at rates up to 1Msample/s
Sample over 5 decades with the digitizer’s 18-bit resolution

Outstanding accuracy with low noise for high confidence

With a low noise input stage and a 32-bit A-D converter, the DMM7510-RACK embodies Keithley's low-level measurements expertise to deliver DC accuracies typically only found in metrology-grade instrumentation.

14 ppm 1-year DC volt accuracy
60 ppm 1-year DC current accuracy
24 ppm 1-year resistance accuracy
Internal auto-calibration

Measure low signals with high sensitivity

High sensitivity enables the Keithley DMM7510-RACK to measure very low voltage, current, and resistance levels and detect small changes and signal drift.

DC voltage sensitivity: 10 nV
Current sensitivity: 1 pA
Resistance sensitivity: 0.1 µΩ

Capture and store more than 27 million readings

Capture a complex waveform profile, study long-term stability, or easily record environmental and life-testing data. The DMM7510-RACK's large internal memory buffer enables extensive reading storage of your device's complete profile.

Standard mode storage: 11 million readings
Compact mode storage: 27.5 Million readings
All readings timestamped

Contact our team for stock availability and product options.

Price £4,130.00

Request a quote

Specifications

DMM7510-RACK Specifications

Best accuracy, low noise
Digitising rate 1000000 reading/s
Measures current drain in all IoT devices operating states
Capture μA sleep mode currents
Transmit currents up to 1 A combining sensitive and fast current measurements
Measures low signals with high sensitivity
Captures and stores more than 27 million readings
Observe, interact with and explore measurements
Connectivity GPIB / USB (TMC) LAN (LXI)

More Information
Attribute	Value
Applications	Test & Measurement, Industrial Automation Control, Wireless, Sensing, Power Management, IIoT (Industrial Internet of Things), Robotics, Alternative Energy, Medical, Audio
Features	Precision multimeter with 3 1/2- to 7 1/2-digit resolution 14 PPM basic one-year DCV accuracy 100mV, 1O, and 10μA ranges offer the sensitivity needed for measuring low-level signals Make accurate low resistance measurements with offset compensated ohms, four-wire, and dry circuit functions Capture and display waveforms or transients with 1MS/sec digitiser Large internal memory buffer Store over 11 million readings in standard mode or 27.5 million in compact mode Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift Display more with a five-inch, high-resolution touchscreen interface Readings and screen images can be saved quickly via the front panel USB memory port Multiple connectivity options: GPIB, USB, and LXI-compliant LAN interfaces Two-year specifications allow for longer calibration cycles
Connectivity	GPIB / USB (TMC) / LAN (LXI)
Digitiser	1 MS/sec
Digits
