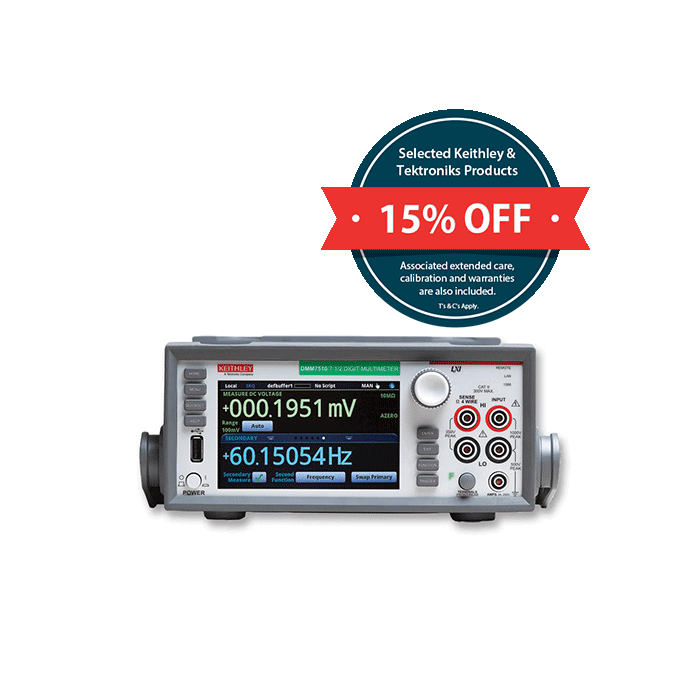

DMM7510

The DMM7510 combines all the advantages of a precision digital multimeter; a graphical touchscreen display, a high-speed and high-resolution digitiser to create an industry-first graphical sampling multimeter. The digitiser gives the DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and ease of use offers unparalleled insight into your test results.

Wide dynamic range for drain current consumption profiling of IoT products

The Keithley DMM7510 digitiser can measure the current drain in all the IoT device’s operating states. Capture µA sleep mode currents and transmit currents up to 1A with the combination of sensitive and fast current measurements from the high-resolution, high-speed digitiser.

• Sample current drain wave shapes at rates up to 1Msample/s
• Sample over 5 decades with the digitizer’s 18-bit resolution

Outstanding accuracy with low noise for high confidence

With a low noise input stage and a 32-bit A-D converter, the DMM7510 embodies Keithley's low-level measurements expertise to deliver DC accuracies typically only found in metrology-grade instrumentation.

• 14 ppm 1-year DC volt accuracy
• 60 ppm 1-year DC current accuracy
• 24 ppm 1-year resistance accuracy
• Internal auto-calibration

Measure low signals with high sensitivity

High sensitivity enables the Keithley DMM7510 to measure very low voltage, current, and resistance levels and detect small changes and signal drift.

• DC voltage sensitivity: 10 nV
• Current sensitivity: 1 pA
• Resistance sensitivity: 0.1 µΩ

Capture and store more than 27 million readings

Capture a complex waveform profile, study long-term stability, or easily record environmental and life-testing data. The DMM7510's large internal memory buffer enables extensive reading storage of your device's complete profile.

• Standard mode storage: 11 million readings
• Compact mode storage: 27.5 Million readings
• All readings timestamped
