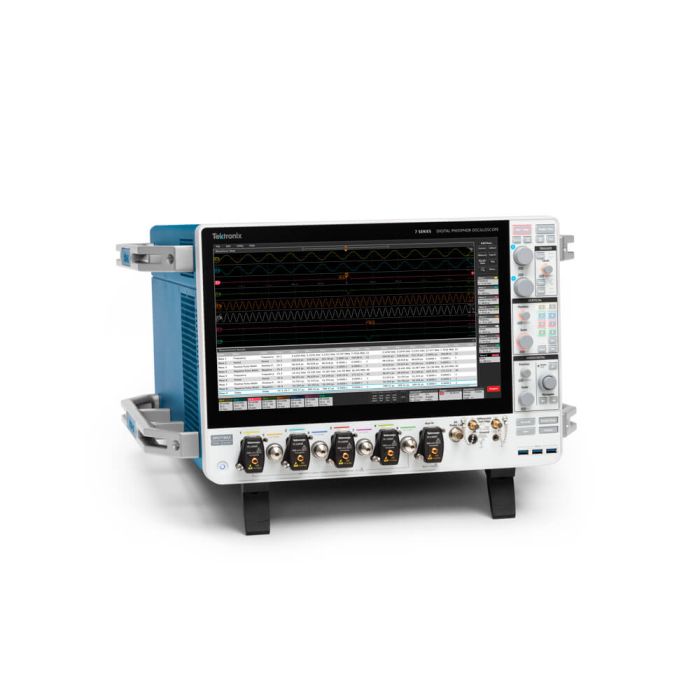

DPO718AX
DPO718AX
Tektronix
7 Series Digital Phosphor Oscilloscope; (8) Channels: (4) TekConnect, 125GS/S sample rate and 250M record length
7 Series DPO high-performance oscilloscope - built to meet the uncompromising demands of high-speed serial, RF and high-energy physics applications
The 7 Series DPO now offers the world's first 8-channel oscilloscope with bandwidths ranging from 8 GHz to 25 GHz per channel, delivering a new level of visibility into complex, multi-channel systems.
Available with 4 or 8 channels, it combines unparalleled signal fidelity, high ENOB, low noise and jitter, fast measurement throughput, and the award-winning TekScope® user interface.
The 7 Series DPO is designed for demanding high-speed serial, high-energy physics, and wideband RF applications. It is compatible with TekConnect™ probes and adapters.
Key Features:
- Available bandwidths: 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (customer upgradable)
- 4 TekConnect® and 4 2.92 mm input channels with one TekConnect Aux In
- Sample rate 125 GS/s on all 4 channels or 62.5 GS/s on all 8 channels
- 12-bit ADC with highest ENOB and lowest random noise
- Precision timebase with low intrinsic jitter
- Record length of 500 Mpts standard. 1 or 2 Gpts optional
- P7700 and P7600 Series TriMode™ probe compatible
- 15.6 inch high-definition touch screen display (1920x1080 resolution)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Channels | 4 TekConnect and 4 2.92 mm |
| Bandwidth | 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (customer upgradeable) |
| Sampling Rate |
125 GS/s on TekConnect channels |
| Calculated Rise Time | 50 ps (8 GHz) to 16 ps (25 GHz) |
| Whats Included |
|
| Waveform Update Rate | up to 150,000 waveforms/sec |
| Dimensions | Height 327 mm x Width 560 mm (with handles) x Depth 620 mm |
| Weight | 85 lbs (38.6 kg) |
| Record Length | 500 Mpoints standard; 1 or 2 Gpoints optional |
| Display | 15.6 inch (396 mm) TFT color |
| Vertical Resolution | 12-bit |
| Arbitrary Waveform Generator |
(Optional)
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
