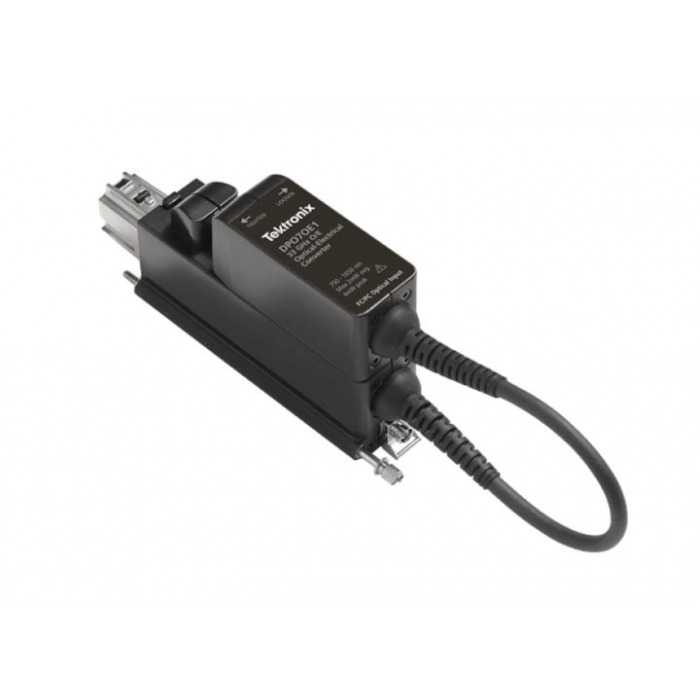

59 GHz bandwidth, single-mode 1200 nm to 1650 nm, optical probe for MSO/DPO70000 Real Time Oscilloscopes
The Tektronix DPO7OE1 Optical probe can be used as Optical Reference Receiver (ORR) for high-speed serial data signals (using selectable Bessel-Thomson ORR filters) or as a conventional O/E converter for general wide-bandwidth optical signal acquisition. The DPO7OE1 is compatible with DPO/MSO70000 C/DX/SX models. Connect to TekConnect channels for up to 33 GHz electrical bandwidth.
Optical signal analysis
The DPO7OE1 optical probe enables deep analysis of PAM4-O and PAM2 (NRZ) signalling using Tektronix's industry-leading DPOJET Jitter and Eye Analysis and PAM4 Analysis software. DPOJET supports traditional optical measurements. These measurements include extinction ratio, eye high, eye low, eye crossing, and optical modulation amplitude.
Versatile configurations
The versatile design of the DPO7OE Series optical probe is compatible with either a DPO70000SX oscilloscope's ATI channel or channels with the TekConnect interface. This versatility makes the DPO7OE Series optical probe suitable for use with all DPO70000SX, MSO/DPO70000DX, and MSO/DPO70000C series oscilloscopes.
Industry-leading PAM4 signalling analysis
The PAM4-O software supports analysis of PAM4 optical signals with clock recovery, error detection, and IEEE and OIF-CEI standard-specific measurements, e.g. TDECQ.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | High Bandwidth Optical Probes |
| Product Family | High Bandwidth - Optical Probes |
| Key Features |
|
| Bandwidth | 59 GHz |
| Whats Included |
Hard case, Instruction manual, Certificate of Traceable Calibration, One year warranty, Optical fiber cleaning tool, ATI input support accessory |
| Applications |
|
| Accessory Type | Probe |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
