DSOX3034T
DSOX3034T
Keysight Technologies

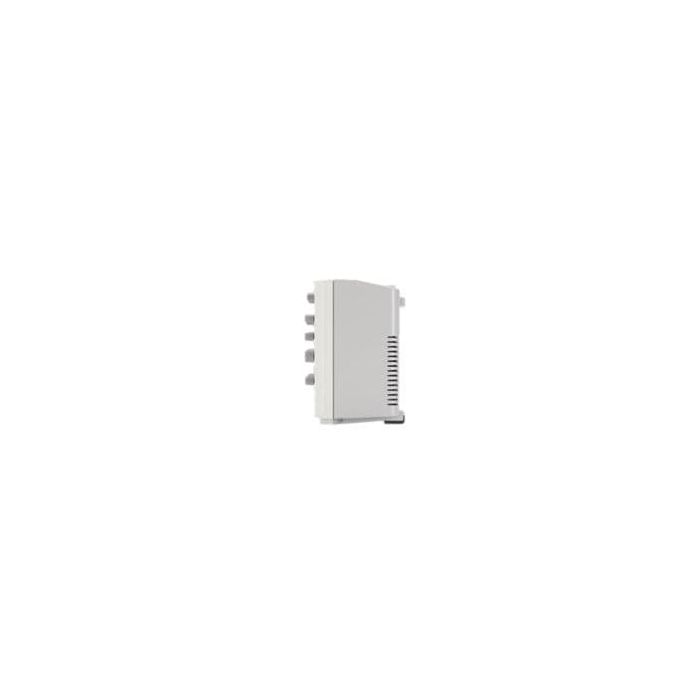

InfiniiVision 3000 X-Series 350MHz Oscilloscope with 4 Analogue Channels
Make measurements you can trust - Keysight 3000T X-Series oscilloscopes deliver high-end technology in a smaller form factor, with an extremely intuitive touch user interface. With an industry-leading waveform update rate, you can capture elusive glitches and anomalies not possible on other oscilloscopes.
Achieve 350 MHz of bandwidth and an immersive signal detail of 1,000,000 waveforms/second update rate with the Keysight DSOX3034T. With the advanced measurement capabilities of the DSOX3034T, Keysight oscilloscopes will help you test more efficiently whilst solving measurement challenges faster and easier. The DSOX3034T provides 4 analogue channels, 4 Mpts memory and a standard touch zone trigger with an 8.5-in capacitive touch screen.
Whats Included
- Factory warranty 3-year warranty (90 days for unserialized accessories such as passive probes)
- Calibration Certificate of calibration, 3-year calibration interval
- Secure erase
- N2843A Passive probe 500 MHz 10:1 attenuation 1 per channel
- Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
- Documentation CD containing localized user’s guide, service guide, and programmer’s manual
- Localized power cord and overlay
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form | Digital Storage |
| Range | InfiniiVision |
| Series | 3000T X-Series |
| Bandwidth | 350 MHz |
| ADC Bits | 8 bits |
| Max Memory Depth | 4 Mpts |
| Max Sample Rate | 5 GSa/s |
| Bandwidth Upgrades | Available |
| Display Size | 8.5-inch capacitive touch screen |
| Special Triggers |
|
| Waveform Update Rate | 1,000,000 wfms/s |
| Channels | 4 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
