DSOX4032G

Keysight Technologies

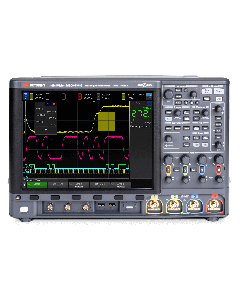

Keysight DSOX4032G 350 MHz Oscilloscope provides 2 analogue channels, up to 4 Mpts memory and 1,000,000 waveforms/sec update rate

Skip to the beginning of the images gallery

The Keysight 4000G X-Series encompasses a combination of advanced performance, intuitive usability and versatile functionality

The 4000G X-Series offers the industry-leading capabilities engineers value in InfiniiVision, such as the fastest uncompromised waveform update rate and the world’s easiest triggering capability, zone trigger. The 4000G raises the bar with advanced features now included in the standard configuration, creating a combination of advanced performance, intuitive usability, and versatile functionality.

4000G X-Series – Versatility Unleashed, Possibilities Amplified

Advanced

Industry’s only uncompromised 1,000,000 waveforms per second update rate
Zone trigger, segmented memory, FFT, math
Standard on G models: dual WaveGen, mask testing, FRA, histograms, some serial decodes

Intuitive

Large touchscreen with easy-to-use interface and built-in help, zone trigger
Options made standard in an easy bundle with G models

Versatile

7 instruments integrated in 1
General debug to industry-specific analysis
License upgradeable
Extensive probe and accessories portfolio

4000G X-Series Bundled with Advanced Options, Standard

The Keysight 4000G X-Series includes all of the optional add on bundles of the 4000A X-Series as STANDARD.

Dual, built-in waveform generators
Waveform & measurement histograms
Mask limit testing
Measurement limit testing
Frequency response analysis (Bode plots)
I2C, SPI, UART, I2S, and USB PD trigger & decode
Enhanced HDTV video analysis

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Specifications

More Information
Attribute	Value
Key Features	Bandwidth - 200 MHz to 1.5 GHz Analogue channels - 2 or 4 Digital Channels - 16 (MSO models or upgrade) Waveform update rate - 1,000,000 wfms/s uncompromised Max sampling rate - 5 GSa/s Touch screen size - 12.1 in Zone trigger - Standard WaveGen - Dual integrated function/arbitrary waveform generator Segmented memory - Standard
Bandwidth	350 MHz
Channels	2
Whats Included	Calibration - Soft copy of Certificate of Calibration (CoC) with measurement results, 2-year calibration interval Probes - One per channel N2894A 700 MHz passive probe (10:1 attenuation), N2756A 16-digital-channel MSO cable (1 per oscilloscope included on all MSO models and DSOXPERFMSO) Localised interface - English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish localised front panel overlays, interface, and built-in help system Power cord - Localised power cord Front panel protection - Front panel cover
Max Memory Depth	4 Mpts
Display Size	12.1-inch high-definition capacitive touch display 800 (H) x 600 (V) pixel format (screen area)
Waveform Update Rate	> 1 million waveforms per second
Series	4000G X-Series
Range	InfiniiVision
Dimensions	456 mm x 275 mm x 156 mm
Sample Rate	5 Gsa/s
Rise Time	≤ 1 ns
Connectivity	Standard USB2.0, LAN, video out (GPIB option)
