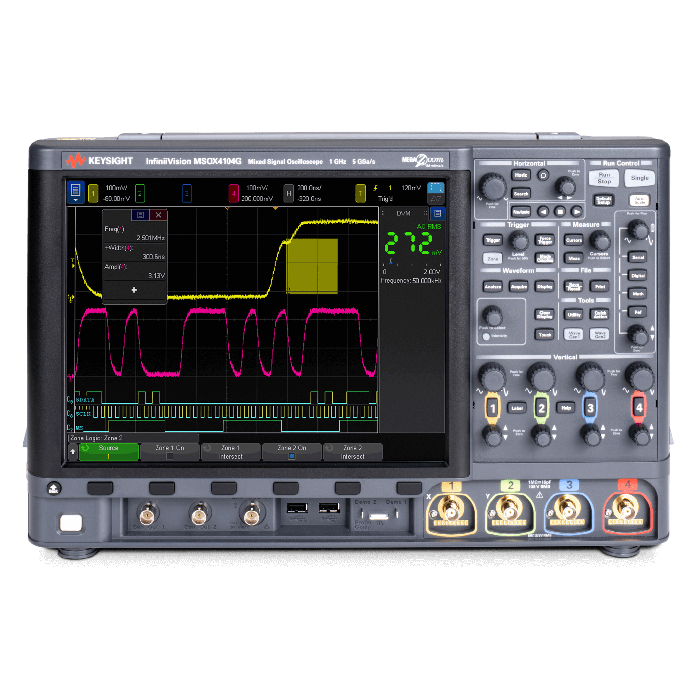

DSOX4154G

The Keysight 4000G X-Series encompasses a combination of advanced performance, intuitive usability and versatile functionality

The 4000G X-Series offers the industry-leading capabilities engineers value in InfiniiVision, such as the fastest uncompromised waveform update rate and the world’s easiest triggering capability, zone trigger. The 4000G raises the bar with advanced features now included in the standard configuration, creating a combination of advanced performance, intuitive usability, and versatile functionality.

4000G X-Series – Versatility Unleashed, Possibilities Amplified

Advanced

• Industry’s only uncompromised 1,000,000 waveforms per second update rate
• Zone trigger, segmented memory, FFT, math
• Standard on G models: dual WaveGen, mask testing, FRA, histograms, some serial decodes

Intuitive

• Large touchscreen with easy-to-use interface and built-in help, zone trigger
• Options made standard in an easy bundle with G models

Versatile

• 7 instruments integrated in 1
• General debug to industry-specific analysis
• License upgradeable
• Extensive probe and accessories portfolio

4000G X-Series Bundled with Advanced Options, Standard

The Keysight 4000G X-Series includes all of the optional add on bundles of the 4000A X-Series as STANDARD.

• Dual, built-in waveform generators
• Waveform & measurement histograms
• Mask limit testing
• Measurement limit testing
• Frequency response analysis (Bode plots)
• I2C, SPI, UART, I2S, and USB PD trigger & decode
• Enhanced HDTV video analysis
