DU35S

DU35S

DU35S

Meinberg

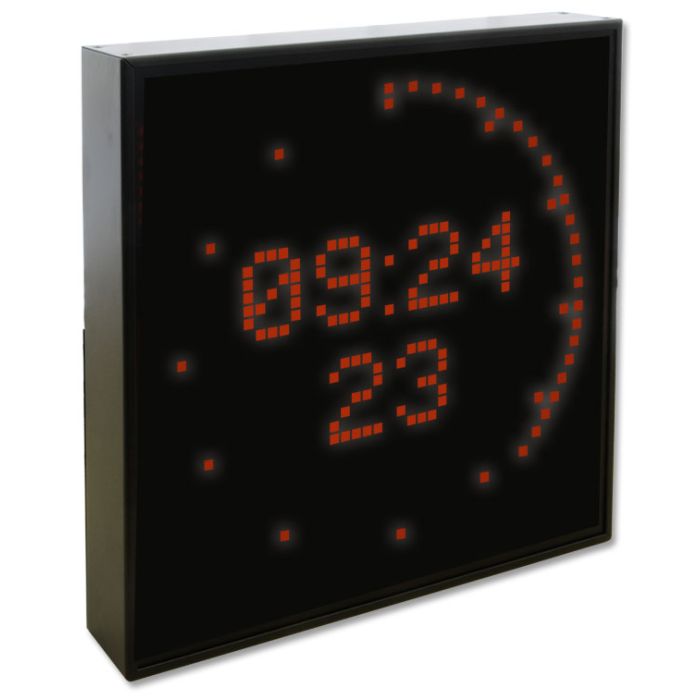

LED Large Display DU35S (date/time with seconds display as dotted circle)

LED Large Display DU35S with LED circle round the display for showing the seconds
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Manual URL https://www.meinbergglobal.com/download/docs/manuals/english/du35s.pdf
Form Factor Plastic coated steel sheet case, black (optional: white),
Relative Humidity Max. 85%
Further information Large display DU35S with good visibility and 50mm height LED characters, working either as
radio clock with integrated DCF77 receiver, DCF indoor antenna AI01 and 5m cable (standard) or, by customers specifications, with an external outdoor antenna AW02. Antenna cables can be prefabricated as required. The connection to the external antenna can be done via BNC connector at the rear panel of the display
free running clock (with or without programmable changeover in daylight saving)
or externally driven display, via serial timestring (RS232 or current loop)
RoHS Yes
Product Type LED Displays
Protection IP30
Output Display Type LED-Matrix Display (7 dots high) for time and date 50mm character height Without serial Synchronisation the clock runs on XTAL with an accuracy of ±1·10-5, indicated by LED
Data format of interfaces Baudrate: 9600 Baud
Dataformat: 7E2
1 active/passive 20mA current loop output (selectable)
1 active/passive 20mA current loop input (selectable)
Output string: 32 ASCII characters with date, time and status information
Electrical Connectors 1 x 25 pin, 1 x 9 pin DSub female connector
power cord receptacle
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end use
Backup Battery Type In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 100 hours
Key Features Stand Alone Clock
20mA Interface
50mm LED Display for Time and Date
RS-232 interface
Display for external Clock
Cascadable
Operating Temperature 0 ... 50°C / 32 ... 122°F
Interface One serial RS232/20mA interface
Power Supply 85-264VAC (50/60Hz) / 120-375VDC
Dimensions 323mm x 323mm x 57mm ( width x height x depth)
More Information
Attribute Value
Data Sheet Click here to view
