Keysight Technologies

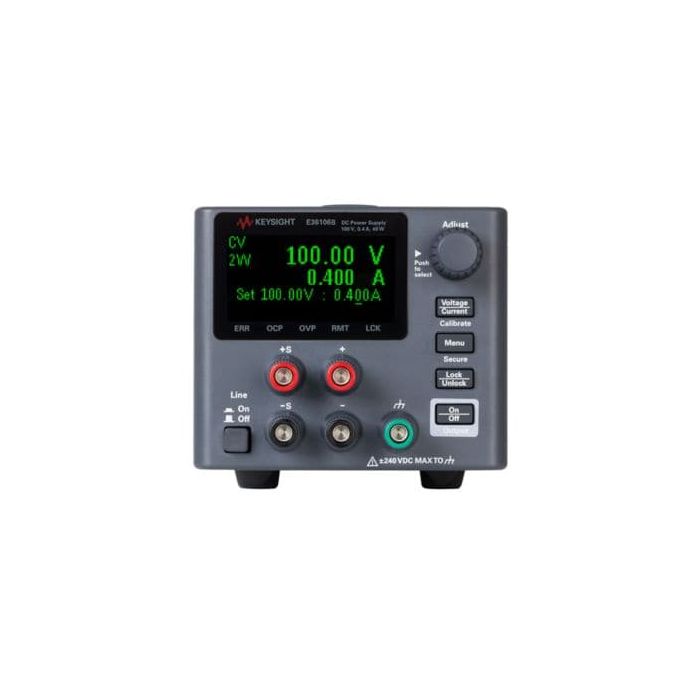

DC power supply, single-output, 100 V, 0.4 A, 40 W

Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.

Clean, reliable power supply

  • Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
  • Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
  • Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection

Convenient benchtop capabilities

  • USB and LAN (LXI Core)
  • BenchVue software support and Web interface control

C ompact, intuitive package

  • Save space on your bench, 2U ¼ rack
  • Easily view the high contrast OLED display
  • Intuitive on-screen menu
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Options Calibration Documentation
  • E36106B-UK6 - Commercial calibration certificate with test data
Custom Solutions
  • E36106B-J01 - Recessed Binding Posts
Voltage
  • E36106B-0E3 - AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
  • E36106B-0E9 - AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
  • E36106B-0EM - AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
Accessories
  • E36110A - Rack mount kit solutions for the E36100 series DC power supplies
Key Features

Output rating : 40 W

  • Voltage: 100 V
  • Current: 0.4 A
  • Power: 40 W

Programming accuracy : ± (% of output + offset)

  • Voltage: 0.05% + 40 mV
  •  Current: 0.05% + 0.3 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 2.5 mV
  • Voltage peak-to-peak: 40 mV
  • Current rms: 160 µA

Readback accuracy : ± (% of output + offset)

  • Voltage: 0.05% + 20 mV
  • Current: 0.05% + 0.2 mA
Power 40 W
Outputs Single Output
Voltage 100 V
Current 0.4 A
Additional Services KeysightCare Service Plan OC
  • R-55D-001-3Z - KeysightCare Technical Support - 3 years
  • R-55D-001-5ZU - KeysightCare Technical Support - Upgrade to 5 years
Calibration service plan
  • R-50C-011-3 - Calibration Plan - Return to Keysight - 3 years
  • R-50C-011-5 - Calibration Plan - Return to Keysight - 5 years
Return to service center warranty and service plan
  • R-51B-001-Z - Return to Keysight Warranty - 3 years
  • R-51B-001-5Z - Extended Warranty - Return to Keysight - 5 years
