800W Autoranging Benchtop single power output DC power supply, 30V, 80A with LAN and USB interfaces

800W Autoranging Benchtop Power Supply, 30V, 80A

The E36150A Series is an extension of Keysight's popular Bench DC Power Supplies that offer great
performance at an affordable price. It comprises two models with 800W power on a single channel output that can supply up to 60V or 80A.

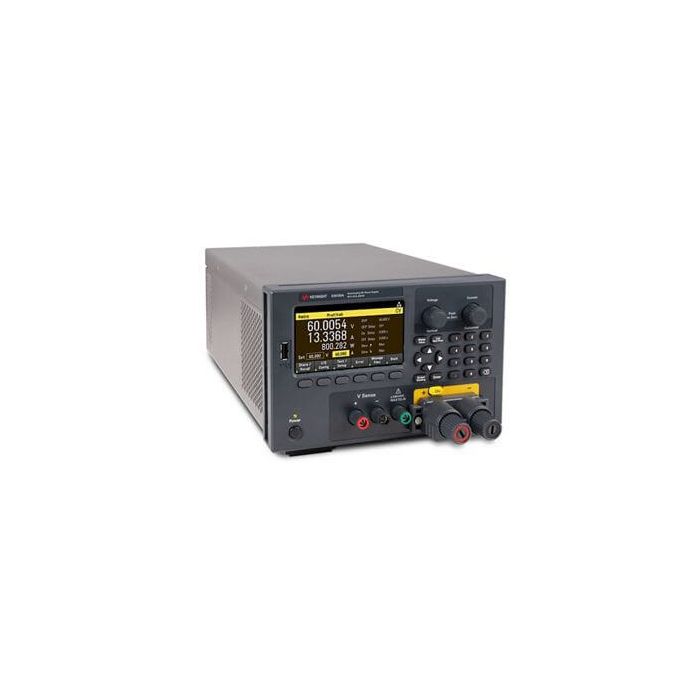

The Keysight E36154A is an 800W, 30V, 80A Autoranging Benchtop single power output DC power supply. The E36154A includes advanced characterization tools such as data logging, an optional scope view, and arbitrary waveform generation. This enables in-depth analysis and precise output modulation for power simulation applications, allowing you to accelerate development projects without compromising quality. All these features work together to provide a one-box solution that eliminates the typical requirements of multiple instruments, therefore, helping you to save time without complex setups as well as reducing your test costs.

The E36154A  brings in a new key innovation — a detachable front binding post that supports a high current up to 80A. The detachable binding post allows easy access to the power outputs allowing for seamless wire connections to your DUTs. More importantly, the front binding post has a built-in auto-protection mechanism to ensure your own safety as well as your devices.

Output Rating- 800 W

  • Output 1: 0 to 30 V, 0 to 80 A

Programming Accuracy ± (% of output + offset)

  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA

Ripple & Noise (20 Hz to 10 MHz)

  • Normal mode Voltage: <50 mV p-p
  • Normal-mode Voltage: <5 mV rms

Readback Accuracy ± (% of output + offset)

  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA
  • Low Range Current: 0.1% + 250 uA
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features

Plenty of usable power

  • Autoranging
  • Peak power handling up to 3X max power rating

Safe, clean, and reliable power

  • Low output ripple and noise
  • Excellent line/load regulation
  • 2-wire or 4-wire remote sense
  • Detachable high current front binding post
  • Over-voltage, over-current, and overtemperature protection

Convenient benchtop capabilities and intuitive interfaces

  • Thermal-control fan speed for minimal acoustic noise
  • 4-wire front output terminal including sense and ground
  • 4.3-inch LCD colour display
  • Individual knobs for voltage and current
  • LAN/LXI, USB and GPIB (upgrade option) interfaces
Outputs Single Output
Voltage 30 V
More Information
Attribute Value
Data Sheet Click here to view
