800W Autoranging Benchtop Power Supply, 60V, 40A

800W Autoranging Benchtop Power Supply, 60V, 40A

The E36150A Series is an extension of Keysight's popular Bench DC Power Supplies that offer great
performance at an affordable price. It comprises two models with 800W power on a single channel output that can supply up to 60V or 80A.

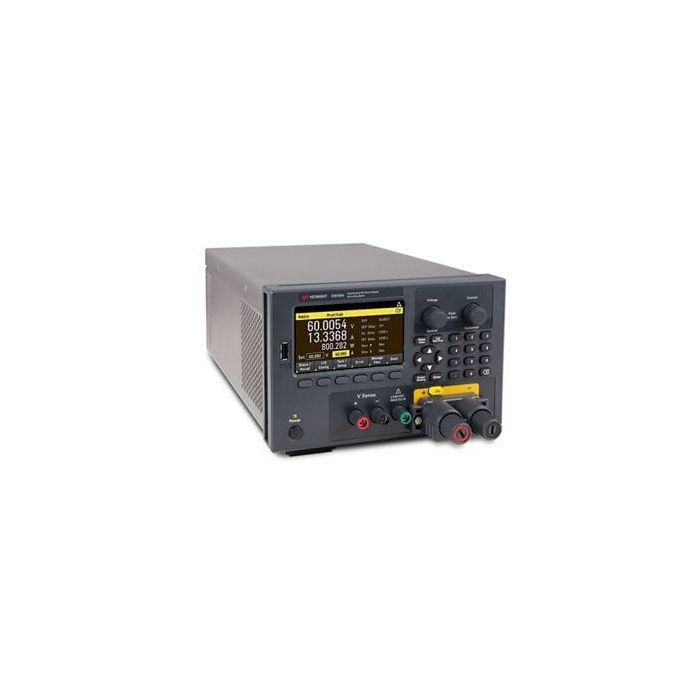

The Keysight E36155A is an 800W, 60V, 40A Autoranging Benchtop single power output DC power supply. The E36155A includes advanced characterization tools such as data logging, an optional scope view, and arbitrary waveform generation. This enables in-depth analysis and precise output modulation for power simulation applications, allowing you to accelerate development projects without compromising quality. All these features work together to provide a one-box solution that eliminates the typical requirements of multiple instruments, therefore, helping you to save time without complex setups as well as reducing your test costs.

The E36155A  brings in a new key innovation — a detachable front binding post that supports a high current up to 80A. The detachable binding post allows easy access to the power outputs allowing for seamless wire connections to your DUTs. More importantly, the front binding post has a built-in auto-protection mechanism to ensure your own safety as well as your devices.

Output Rating- 800 W

  • Output 1: 0 to 30 V, 0 to 80 A

Programming Accuracy ± (% of output + offset)

  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA

Ripple & Noise (20 Hz to 10 MHz)

  • Normal mode Voltage: <50 mV p-p
  • Normal-mode Voltage: <5 mV rms

Readback Accuracy ± (% of output + offset)

  • Voltage: 0.03% + 5 mV
  • Current: 0.1% + 20 mA
  • Low Range Current: 0.1% + 250 uA
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features

Advanced characterization

  • Built-in voltage and current measurements
  • Data logging
  • Output sequencing and syncing with digital I/O
  • LIST mode programming
  • Low-range current measurement
  • Adjustable voltage slew rate
  • Scope View (upgrade option)
  • Arbitrary waveform generator (AWG) (upgrade option)

Application Software and Automation

  • BV0003B Pathwave BenchVue Power Supply App
  • BV9200B/BV9201B BenchVue Advanced Power Control and Analysis
Outputs Single Output
Voltage 60 V
Current 40 A
