E3630A

35 W Triple Output, 6 V, 2.5 A and ±20 V, 0.5 A

The Keysight E3630A - Reliable power in a dual and triple output adjustable power supply with a compact design, the E3630A Laboratory DC Power Supply provides excellent performance while saving space on your bench.

Reliable Power, Repeatable Results

• Linear power supply
• Dual or triple output
• 10-turn voltage and current control
• Low noise and excellent regulation

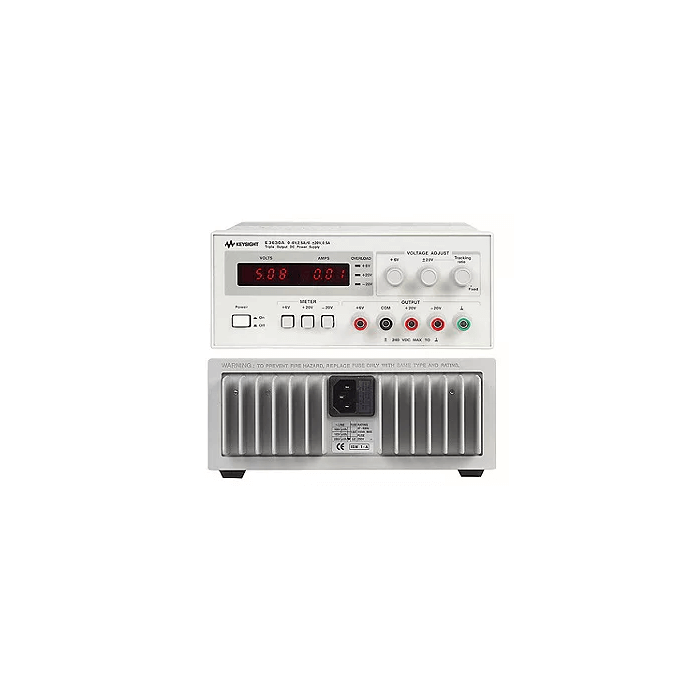

E3630A triple-output power supply with auto-tracking feature

The 35-watt E3630A triple-output power supply provides three DC outputs: 0 to 6 V with a maximum current of 1 to 2.5 A and 0 to 20 V and 0 to %20 V with a maximum current of 0.5 A. An auto-tracking feature lets you use one voltage control to adjust the +20 V and %20 V outputs simultaneously. The outputs track each other to within 1 percent, making it easy to adjust the power supply for circuits requiring balanced voltages.

Multiple-output non-programmable models

The Keysight Technologies E3620A and E3630A low-cost benchtop power supplies give you the performance of a system power supply at a reputable price. Both supplies provide clean power with excellent regulation and fast transient response. With multiple supplies in a compact unit, the E3620A and E3630A provide excellent performance, whilst saving you space on your bench. Both instruments feature a tight 0.01 percent line, load regulation and a low normal mode noise specification of less than 0.35 mV to ensure clean power for precision circuitry.
