Name: E3632A
Brand: Keysight Technologies
SKU: E3632A
Rating: 5 (1 reviews)

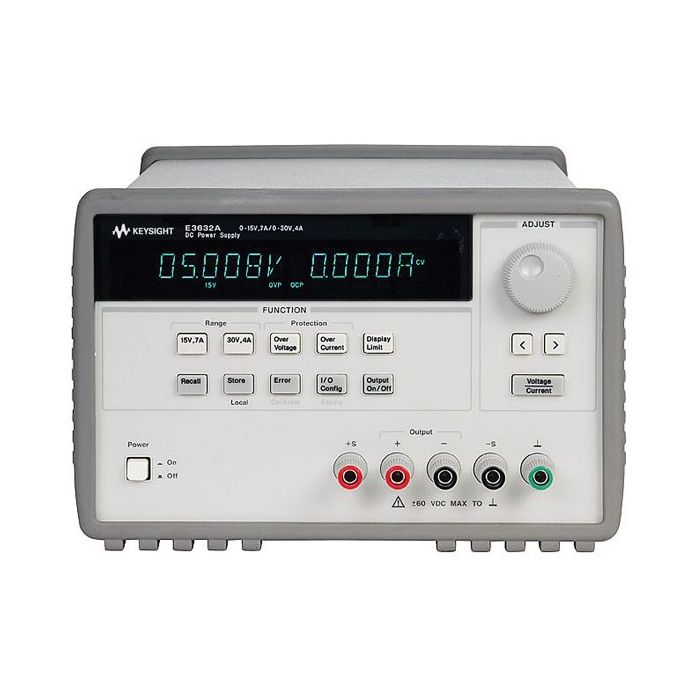

E3632A

Keysight Technologies

DC power supply. Single output, dual range: 0-15V, 7A; 0-30V, 4A 105/120W. GPIB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The single output, 120 W Keysight E3632A, provides dual-range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and is a programmable power supply with GPIB and RS232 interfaces.

Programming accuracy at 25°C ±5°C

Voltage: 0.05% + 10 mV
Current: 0.2% +10 mA

Ripple & noise (20 Hz to 20 MHz)

Normal-mode voltage: <350 µVrms/2 mVpp
Normal-mode current: <2 mA rms

Readback accuracy at 25°C ±5°C

Voltage: 0.05% + 5 mV
Current: 0.15% + 5 mA

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.

Request a quote

Specifications

More Information
Attribute	Value
Options	Input Voltage E3632A-0EM - AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz E3632A-0E3 - AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz Calibration Document E3632A-UK6 - Commercial calibration certificate with test data Accessories E3632A-1CM - Rackmount kit - mounts one with blank filler panel included E3632A-1CP - Rack mount kit - mounts 3U instrument to the front of System II rack E3632A-1CN - Rackmount kit - mounts two products side-by-side E3600A-100 - Test lead kit, banana plug to SMT grabber Additional Documentation E3632A-ABJ - Japan - Japanese user guide
Key Features	Output ratings Range 1: 0 to 15 V, 7 A Range 2: 0 to 30 V, 4 A Programming accuracy at 25°C ±5°C Voltage: 0.05% + 10 mV Current: 0.2% +10 mA Ripple & noise (20 Hz to 20 MHz) Normal-mode voltage: <350 µVrms/2 mVpp Normal-mode current: <2 mA rms Readback accuracy at 25°C ±5°C Voltage: 0.05% + 5 mV Current: 0.15% + 5 mA
Outputs	Range 1: 0 to 15 V, 7 A Range 2: 0 to 30 V, 4 A
Power	105 W / 120 W
Outputs	Single Output
Voltage	0-15 V, 0-30 V
Current	4 A
Additional Services	KeysightCare Service Plan OC R-55D-001-3Z - KeysightCare Technical Support - 3 years R-55D-001-5ZU - KeysightCare Technical Support - Upgrade to 5 years Calibration service plan R-50C-011-3 - Calibration Plan - Return to Keysight - 3 years R-50C-011-5 - Calibration Plan - Return to Keysight - 5 years R-50C-011-MU-3 - Keysight Calibration + Uncertainties - 3 years R-50C-011-MU-5 - Keysight Calibration + Uncertainties - 5 years Services for power supply series PS-S10 - Remote scheduled productivity assistance hours PS-S20 - Startup assistance, daily Return to service center warranty and service plan - includes Service Pack R-51B-001-Z - Return to Keysight Warranty - 3 years R-51B-001-5Z - Extended Warranty - Return to Keysight - 5 years

Documents

More Information
Attribute	Value
Data Sheet	Click here to view
