E3647A

E3647A

Keysight Technologies

DC power supply, dual-output, dual range: 0-35V/ 0.8 A and 0-60V/ 0.5 A, 60 W. G

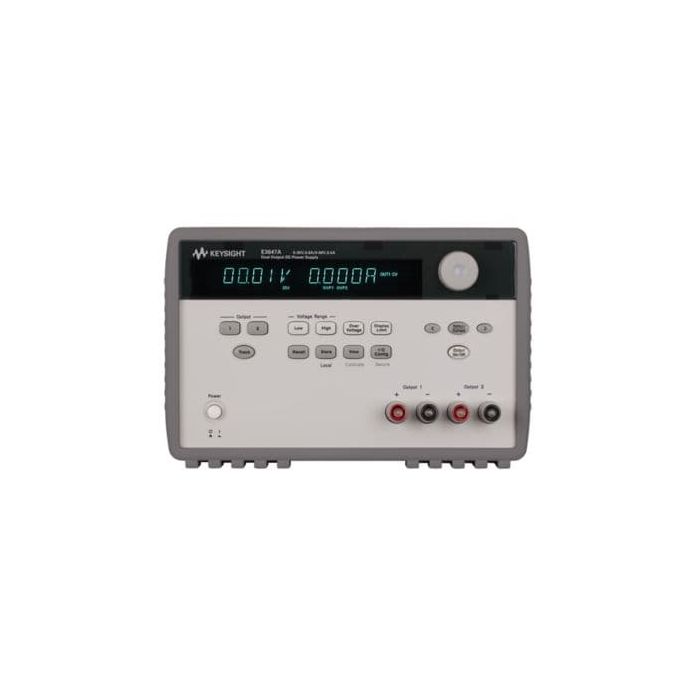

main product photo

Keysight basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features with GPIB and RS232 interface. The Keysight 58W, multiple output E3647A is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Options Input Voltage
  • E3647A-0EM - AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
  • E3647A-0E3 - AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
Calibration Document
  • E3647A-UK6 - Commercial calibration certificate with test data
Accessories
  • E3647A-1CM - Rackmount kit - mounts one with blank filler panel included
  • E3600A-100 - Test lead kit, banana plug to SMT grabber
Additional Documentation
  • E3647A-ABJ - Japan - Japanese user guide
Key Features Output ratings (@ 0°C to 40°C) 2 outputs
  • Range 1: 0 to 35 V / 0.8 A
  • Range 2: 0 to 60 V / 0.5 A
Programming accuracy (@ 25°C ±5°C), ±(% output + offset)
  • Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
  • Current: <0.2% + 10 mA
Ripple & noise 20 Hz to 20 MHz
  • Normal Mode Voltage: <8 mVpp / 1 mVrms
  • Normal Mode Current: <4 mArms
Readback accuracy (@ 25°C ±5°C), ±(% output + offset)
  • Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
  • Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
Power 60 W
Outputs Dual Output
Voltage 0-35 V, 0-60 V
Current 0.8 A, 0.5 A
Additional Services KeysightCare Service Plan OC
  • R-55D-001-3Z - KeysightCare Technical Support - 3 years
  • R-55D-001-5ZU - KeysightCare Technical Support - Upgrade to 5 years
Calibration service plan
  • R-50C-011-3 - Calibration Plan - Return to Keysight - 3 years
  • R-50C-011-5 - Calibration Plan - Return to Keysight - 5 years
  • R-50C-011-MU-3 - Keysight Calibration + Uncertainties - 3 years
  • R-50C-011-MU-5 - Keysight Calibration + Uncertainties - 5 years
Return to service center warranty and service plan - includes Service Pack
  • R-51B-001-Z - Return to Keysight Warranty - 3 years
  • R-51B-001-5Z - Extended Warranty - Return to Keysight - 5 years
More Information
Attribute Value
Data Sheet Click here to view
