E3648A

E3648A

E3648A

Keysight Technologies

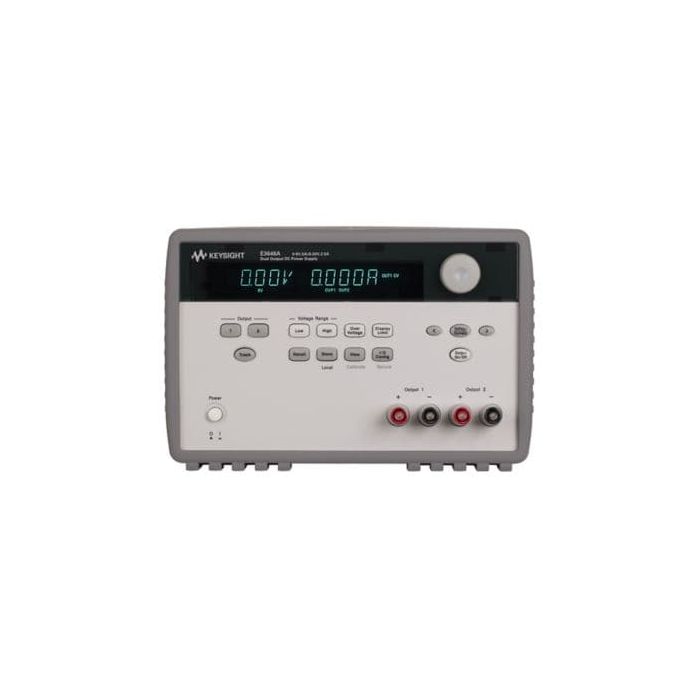

DC power supply, dual-output, dual range: 0-8V/ 5A and 0-20V/ 2.5 A, 100 W. GPIB

Keysight basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features with GPIB and RS232 interface. The Keysight 90W, multiple output E3648A is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package.

Count erfeits of this or closely related products have been found in the market. To ensure you are purchasing an authentic Keysight product with the quality and performance you expect, purchase through Keysight authorized distribution partners. Click on the “How to Buy or Rent” button, above, to find authorized distribution partners.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Options Input Voltage
  • E3648A-0EM - AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
  • E3648A-0E3 - AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
Calibration Document
  • E3648A-UK6 - Commercial calibration certificate with test data
Accessories
  • E3648A-1CM - Rackmount kit - mounts one with blank filler panel included
  • E3600A-100 - Test lead kit, banana plug to SMT grabber
Additional Documentation
  • E3648A-ABJ - Japan - Japanese user guide
Key Features Output ratings (@ 0°C to 40°C) 2 outputs
  • Range 1: 0 to 8 V / 5 A
  • Range 2: 0 to 20 V / 2.5 A
Programming accuracy (@ 25°C ±5°C), ±(% output + offset)
  • Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
  • Current: <0.2% + 10 mA
Ripple & noise 20 Hz to 20 MHz
  • Normal Mode Voltage: <5 mVpp / 0.5 mVrms
  • Normal Mode Current: <4 mArms
Readback accuracy (@ 25°C ±5°C), ±(% output + offset)
  • Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
  • Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
Power 100 W
Outputs Dual Output
Voltage 0-8 V, 0-20 V
Current 5 A, 2.5 A
Additional Services KeysightCare Service Plan OC
  • R-55D-001-3Z - KeysightCare Technical Support - 3 years
  • R-55D-001-5ZU - KeysightCare Technical Support - Upgrade to 5 years
Calibration service plan
  • R-50C-011-3 - Calibration Plan - Return to Keysight - 3 years
  • R-50C-011-5 - Calibration Plan - Return to Keysight - 5 years
  • R-50C-011-MU-3 - Keysight Calibration + Uncertainties - 3 years
  • R-50C-011-MU-5 - Keysight Calibration + Uncertainties - 5 years
Return to service center warranty and service plan - includes Service Pack
  • R-51B-001-Z - Return to Keysight Warranty - 3 years
  • R-51B-001-5Z - Extended Warranty - Return to Keysight - 5 years
More Information
Attribute Value
Data Sheet Click here to view
