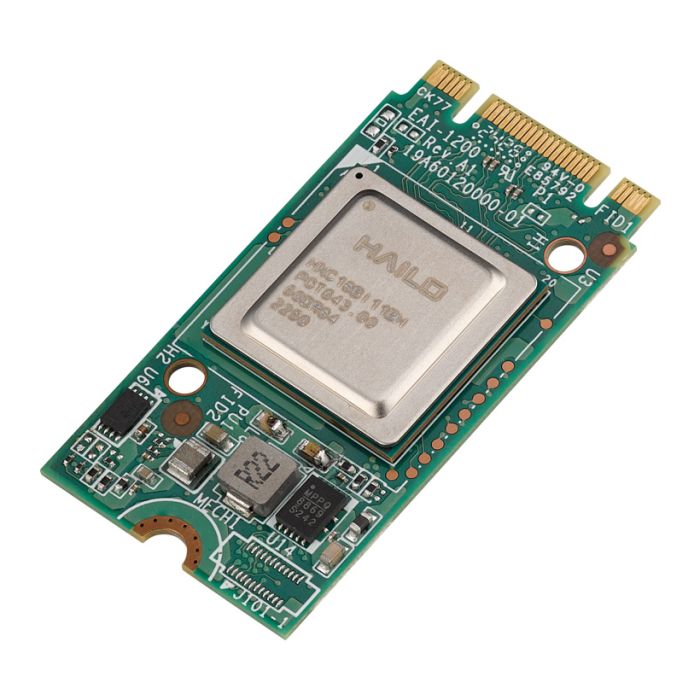

Hailo-8™ M.2 AI Acceleration Module
Hailo-8™ M.2 AI Acceleration Module
- AI Performance: 26 TOPS AI Computing delivered by Hailo-8 VPU
- Form Factor: M.2 2242 with optional 2280 extensions
- Operating Temperature: -40~65°C with optional heatsink
- Power Consumption: Typical 2.5W low power consumption
- AI Development Toolkits: Rich AI Dev. Toolkits including Model Library, Model Converter, Runtime SDK Integration
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Consumption |
Typical: 2.5W depends on AI model |
| Form Factor | M.2 2242 (Key B+M) |
| Operating Temperature | -40 ~ 85°C (Throttling), with 0.7m/s air flow |
| Dimensions | Dimensions (W x D x H): 22mm x 42mm x 2.63mm |
| Interface | Signal Interface: PCI Express Gen3.0 x2 |
| Power |
Typical: Typical 2.5W depends on AI model |
| Input Voltage Range - Power Supply | DC input 3.3V ±5% |
| Processor | VPU: 1x Hailo-8™ |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
