EAI-3101
EAI-3101
Advantech

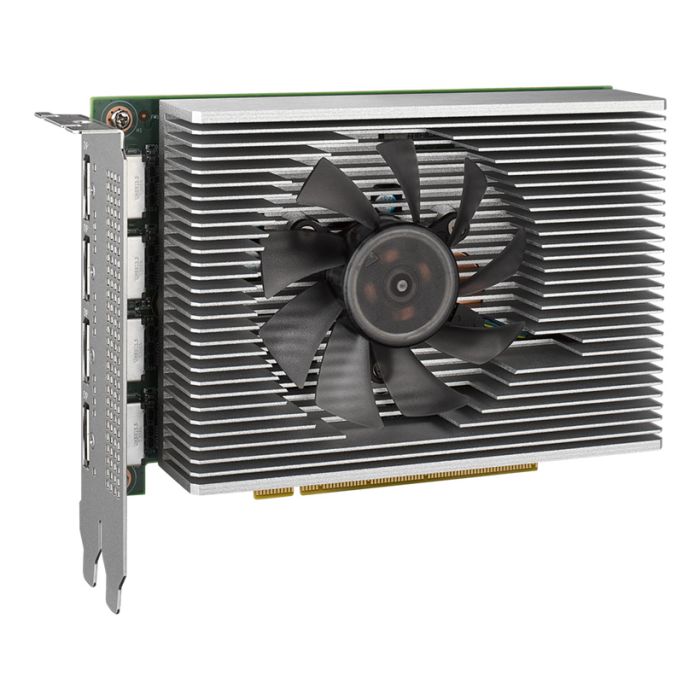

PCIe x16 Intel Arc A380E Embedded GPU Card with 4x DP 1.4a
PCIe x16 Intel Arc A380E Embedded GPU Card with 4x DP 1.4a
Key Features
- Intel Arc A380E with 2000 MHz Base Clock, GDDR6 6GB 96 bit Memory, up to 5.018 TFLOPS
- 4x DP1.4a up to 8K UHD resolution
- 0-60°C working temperature support w/ auto smart fan
- Advantech Edge AI SDK and Intel OpenVINO support
- AV1, DirectX12, OpenGL 4.6, OpenCL 3.0, H.264/H.265 (HEVC) hardware encode/decode support
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Consumption |
Maximum: 85W |
| Operating Temperature | 0 ~ 60°C |
| Dimensions | 152 W x 110 D x 34.8 mm H (Dual Slot) |
| Interface | Signal Interface: PCI Express Gen 4.0 x8 |
| Power | Power Consumption: Maximum 85W |
| Memory | Technology: GDDR6 6GB |
| Processor |
GPU: Intel® Arc™ A380E |
| Graphics | DP: 4x DisplayPort1.4a |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
