EDU34450A

EDU34450A Provides Industry-Grade Measurement Capabilities

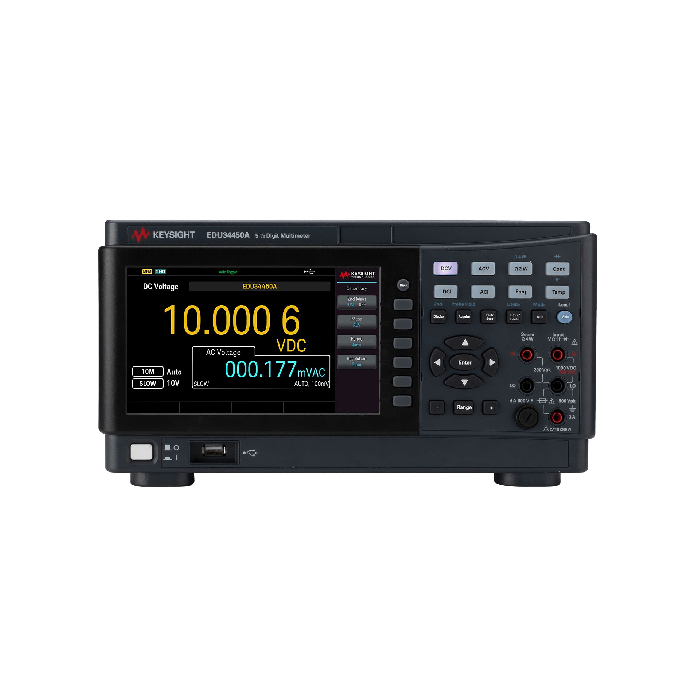

The Keysight EDU34450A is a modern benchtop digital multimeter (DMM) that is part of the Keysight Smart Bench Essentials (SBE) Series of four unique instruments that harness one powerful graphical interface to connect, control, and capture measurement data.

The Keysight EDU34450A features 5.5 digits of resolution and up to 110 readings/s measuring rate for speed-critical tests. You get the benefits of Keysight measurement performance in an affordable and compact package, with the following features:

Keysight EDU34450A Highlights:

• Download BenchVue Basic app for free to control your instruments.
• 5,000 point logging memory for prolonged data logging and analysis
• Ability to measure up to 11 types of input signals
• PathWave BenchVue software or USB flash drive support to copy/load configuration for repeated test setup
• Signature 7-inch dual-measurement colour display
• Standard USB and LAN for flexible PC connectivity

Combination of hard and soft keys for more intuitive front-panel operation

For easy access to the most frequently used measurement functions, the EDU34450A retains all the function keys found on a traditional DMM. The function key lights up when pressed to provide a clear indication of the parameter you are measuring. The intuitive soft keys allow more advanced configuration when the need arises. Combining these hard and soft keys allows you to quickly set up and begin your measuring tasks without a steep learning curve.

Standard connectivity to the PC

The DMM has a built-in gigabit LAN and USB. The remote connectivity allows you to connect to the PathWave BenchVue DMM software for more advanced data logging and export logged data. You can also use the software to retrieve the data saved in non-volatile memory. Software drivers are available if you prefer to write your own program, with SCPI commands to control the DMM and automate your test.

Signature 7-inch dual-measurement colour display

The EDU34450A comes with a 7-inch, dual-measurement colour display. With this innovation, you can view your measurement setup, instrument status, reading, and statistics all at once, without flipping through several screens.

It features a secondary display where you can view the primary and secondary components of your input signal at the same time to help you better understand your device under test. With the large display, you can set up data logging and view the logged data easily.
