EHP Series Extra High Performance Microwave Pyramidal Absorber
EHP-08PCL Extra High Performance Microwave Pyramidal Absorber - 1 GHz to 40 GHz

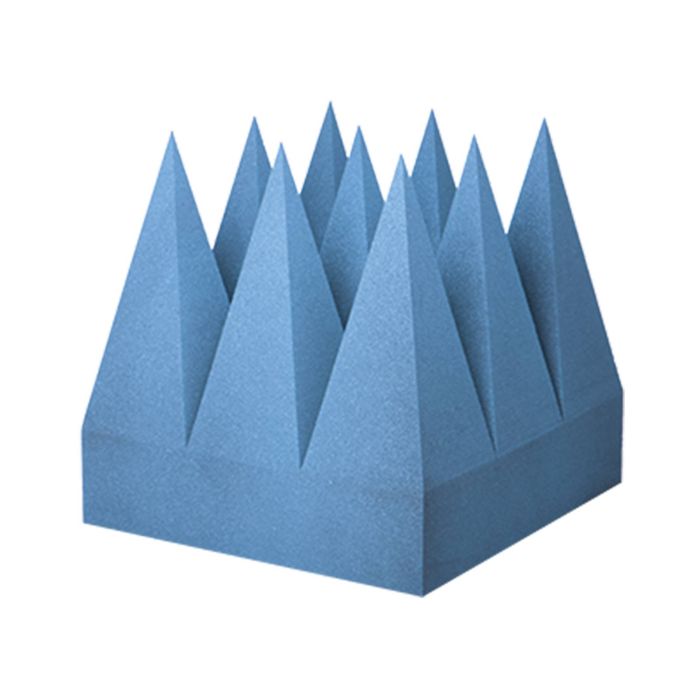

ETS-Lindgren's EHP-08PCL provides broadband absorption from 1 GHz to 40 GHz. Fabricated from the highest quality urethane foam, cut into a precise pyramidal configuration and impregnated with conductive carbon.
Key Features:
- Frequency Range: 1 GHz to 40 GHz
- 64 pyramids per 24 in x 24 in absorber
- Overall Height: 21.6 cm (8.50 in)
- 1.0 W/in² Power Handling
- Non-Hygroscopic Substrate
- Fire Retardant
- FlexSorb™ option available
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Handling | 1.0 W/in² (1.55 kW/m²) |
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 21.6 cm (24 in x 24 in x 8.50 in) |
| Weight | 2.8 kg (6.17 lb) |
| Operating Temperature | Temperature: 12°C to 32°C (50°F to 90°F), Relative Humidity: 50% ± 20% |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 1 GHz |
| Standards | NRL 8093 Tests 1,2,3; TI #2693066; MIT MS-8-21; UL 94; DIN 4102-B2 |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
| Pyramids Per Absorber | 64 |
