MIC-743-AT
MIC-743-AT
Advantech

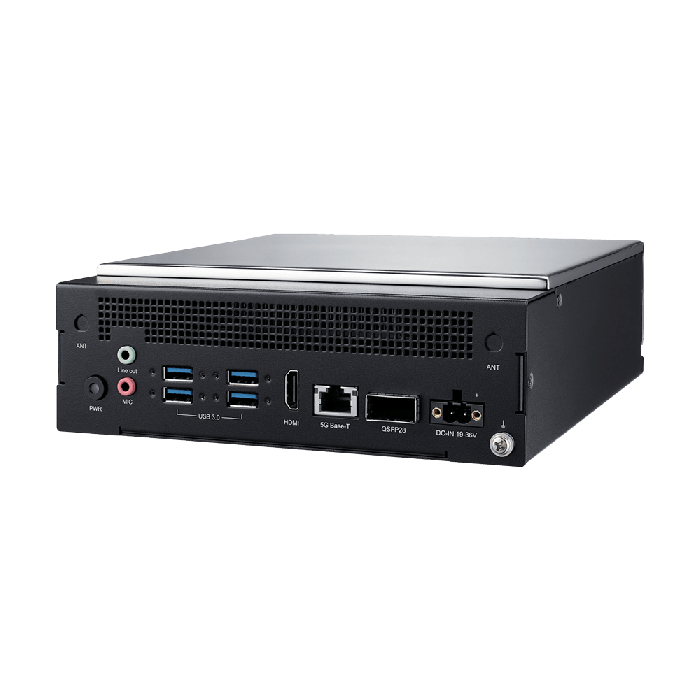

AI Inference System Accelerated by NVIDIA® Jetson Thor™ Module
AI Inference System Accelerated by NVIDIA® Jetson Thor™ Module.
Key Features:
- Embedded with NVIDIA® Jetson T5000™ up to 2070 TFLOPS (FP4)
- Supports 1 x QSFP28 (4 x 25GbE)
- Supports 1 x 5GbE, 4 x USB 3.2 Gen 2, 1 x M.2 AEkey(WiFi), 1 x M.2 Bkey (LTE)
- Support multiple purpose of large AI model for Generative AI application
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU |
14 core Arm® Neoverse V3AE (64-bit) SMP CPU architecture |
| GPU | 2560 NVIDIA® CUDA® cores 96 5th Gen Tensor cores MAXN: 1.57 GHz |
| NVIDIA® CPU/GPU | NVIDIA® Jetson Thor™ |
| Memory | 128GB LPDDR5X |
| USB | 4 x USB 3.2 Gen 2 |
| OTG USB | 1 x Micro USB |
| SIM | 1 x Nano SIM on side of board |
| TPM (Optional) | 1 x TPM (onboard) |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| Ethernet | 4 x 25GbE (QSFP28), 1 x 5GbE (RJ45) |
| Power Type | Terminal Block 2 Pin |
| Power Supply Voltage | 19-36V |
| M.2 B-Key | 1 x 3052/3042 B-key (Signal: USB3.0 + USB2.0) |
| M.2 E-Key | 1 x 2230 E-key (Signal: PCIex1 + USB2.0) |
| Console | 1 x microUSB console for debug (UART to USB) |
| Audio | 1 x audio speaker out, MIC in on board |
| QSFP28 | 4 x 25GbE |
| RJ45 | 1 x 10/100/1000/2500/5000 Mbps Ethernet |
| M.2 M-Key |
1 x 2280 M-key NVMe (PCIex4) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
