Command control at your fingertips, Cobalt Cube brings together essential apps, devices, and vehicle systems from the infotainment screen
Intelligent Vehicle Application & Connectivity Platform

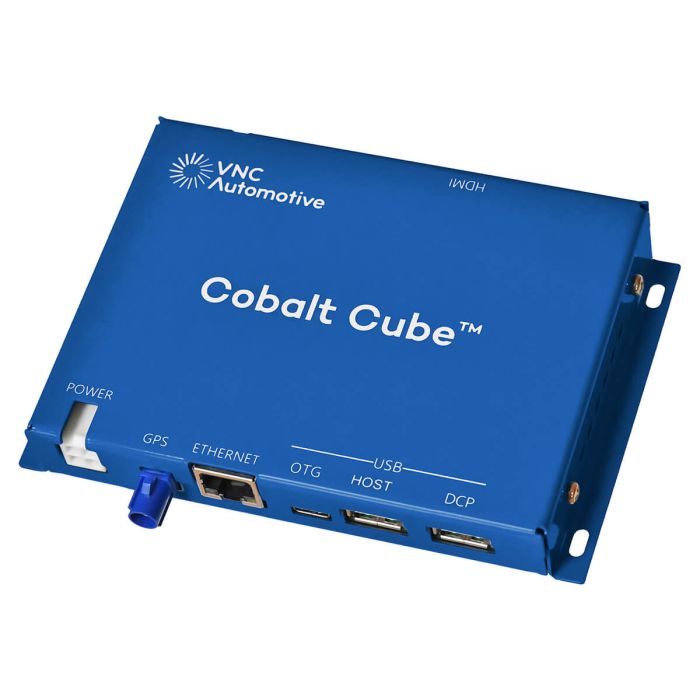

Cobalt Cube® is a system-on-chip (SoC) device that provides a consistent, intelligent applications hosting platform, with the vehicle HMI acting as the display. Increasingly popular for OEM line-fit or aftermarket fitment, it allows OEMs to provide applications and services for its customers independent of smartphone handset, head unit or global location. Cobalt Link+ is embedded within Cobalt Cube and provides virtually instantaneous connectivity between the device and the in-built vehicle display.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power | 12V (flexible jack/adapter options available) In, 5V USB Type-C In, 5V USB Type-A Out |
| Telematics | Cobalt Remote |
| Compliances | FCC, CE and UKCA |
| Average Power Consumption | 4.6W |
| Networking | Wi-Fi (802.11 a/b/g/n/ac) 2.4/5 GHz, Ethernet 10/100MB/s, Bluetooth 5.0 |
| Display Out | HDMI 1.4, 2.0 (HDCP 1.4, HDCP 2.2) |
| Connectivity | Android Auto (wireless and wired), Cobalt Link+ (wireless and wired), MirrorLink |
| Dimensions | 143 x 94 x 22.1 mm |
| Universal Serial Bus (USB) Ports |
1 x USB 2.0 Type-A, 1 x USB 2.0 Type C (OTG), 1 x USB A (5V out dedicated charging) |
| CPU | Quad-Core ARM Cortex A53 |
| GPU | Embedded ARM 3D; OpenCL 1.2; OpenGL ES 3.1 |
| GPS | GLONASS QN40 |
| Available Memory |
RAM: LPDDR3. 4GB; ROM: eMMC 8/16/32GB; USB flash via USB Type-A port |
| Operating system | Android 9 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
