Ultra Broadband Microwave Absorber
Ultra Broadband Microwave EMC Absorber

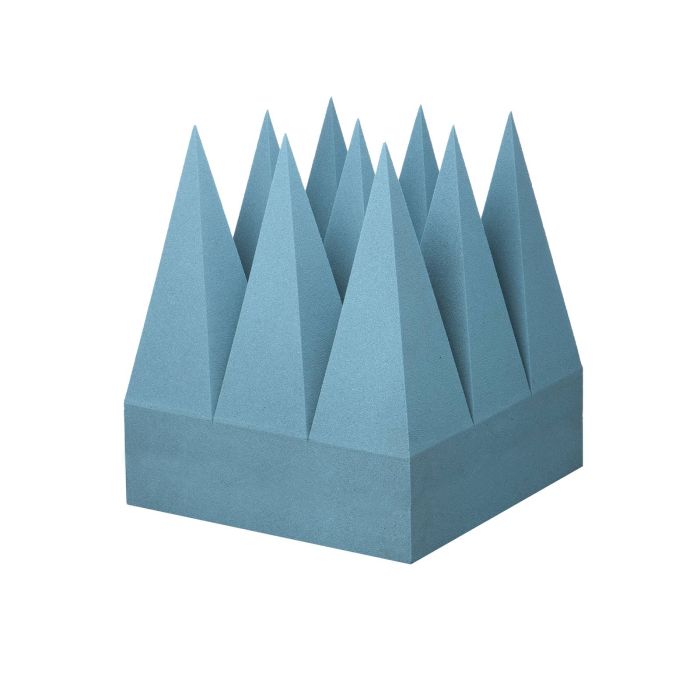

ETS-Lindgren’s EMC-24PCL EMC Absorber is an ultra broadband microwave absorber which has been optimized for EMC applications.
Its design is an evolution of traditional pyramidal polyurethane absorber and combines carefully balanced dielectric properties with a special geometry that is suited for low frequency operation.
Key Features:
- Ultra Broadband Performance: 80 MHz to 40 GHz
- Designed for MIL-STD-461D/E/F, and RTCA-DO-160 Testing
- Ideal for New or Retrofit Chamber Installations
- Non-Hygroscopic Substrate
- 0.5 Watt/in2 or 775 Watt/m2 Power Handling
- 90°C Maximum Service Temperature
- Fire Retardant
- FlexSorb option available
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61.0 cm x 61.0 cm x 61.0 cm (24.02 in x 24.02 in x 24.02 in) |
| Weight | 4.1 kg (9.0 lb) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 80 MHz |
| Standards |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
