CX-5CL
CX-5CL
ETS-Lindgren
2 GHz to 110 GHz - Convex Series Absorber

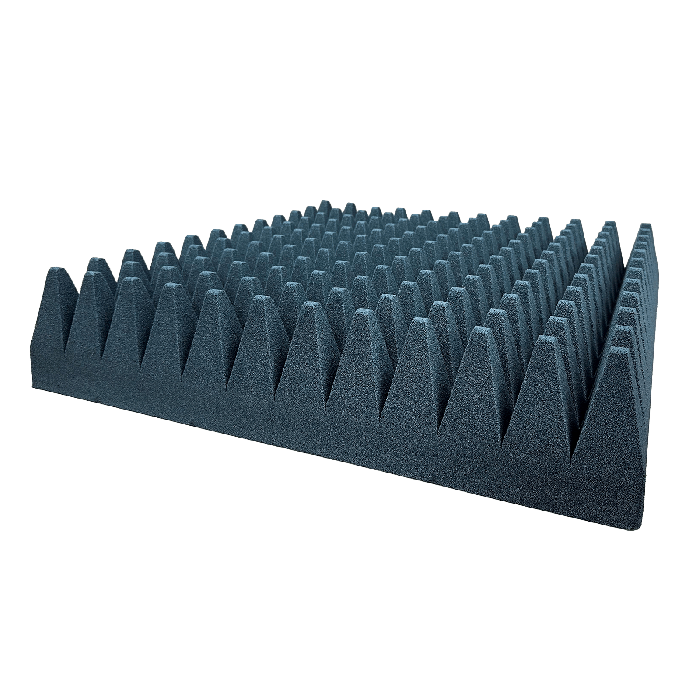

CX-5CL Convex Absorber - 2 GHz to 110 GHz
ETS-Lindgren's Convex Absorber is designed to provide reflectivity performance of 35 dB or greater and minimizes low forward scattering characteristics at incident angles up to 60° or greater from normal incidence at microwave and millimeter-wave frequency ranges. The absorber's specially designed geometry creates a gradual transition from free-space to loaded substrate, for absorption of electromagnetic energy.
Key Features:
- Frequency Range: 2 GHz to 110 GHz
- Overall Height: 12.7 cm (5.00 in)
- RF Reflectivity: 25 dB @ 2-4 GHz; 32 dB @ 4-8 GHz; 35 dB @ ≥ 8 GHz
- RF Reflectivity Performance up to 60° from Normal Incidence
- 0.5 W/in² Power Handling Capability
- Non-Hygroscopic Substrate
- Uniquely Shaped Tips Minimize Breakage
- Fire Retardant
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 12.7 cm (24 in x 24 in x 5.00 in) |
| Maximum Frequency | 110 GHz |
| Minimum Frequency | 2 GHz |
| Standards | NRL 8093 Tests 1,2,3; TI #2693066; MIT MS-8-21; UL 94; DIN 4102-B2 |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
