ETS-Lindgren
4 GHz to 40 GHz - EHP Series Wedge Absorber

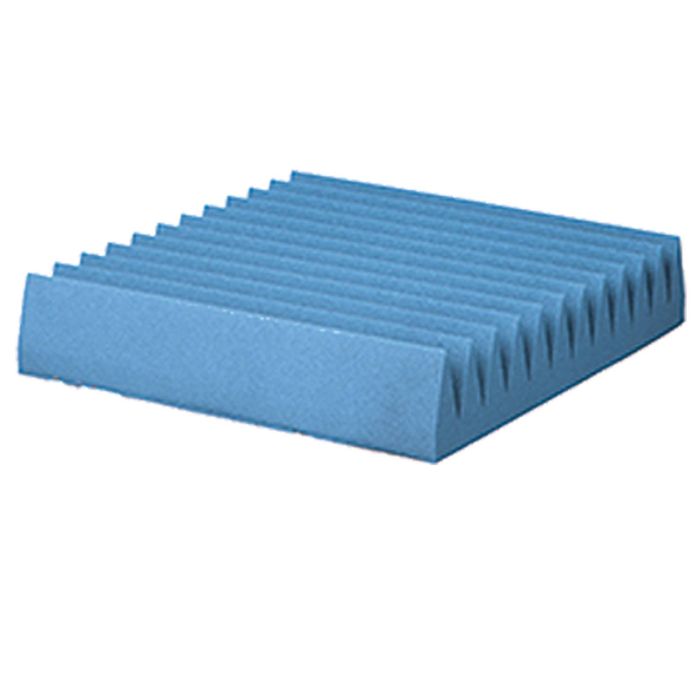

EHP-3WGCL Wedge Absorber - 4 GHz to 40 GHz
ETS-Lindgren's EHP-3WGCL Wedge Absorber effectively reduces reflections and its RF reflectivity levels are the same as its equivalent sized pyramid absorber. Wedge absorbers are used in areas of chambers where pyramid absorbers would provide too much backscatter under specific configurations.
Key Features:
- Frequency Range: 4 GHz to 40 GHz
- Absorber Height: 8.3 cm (3.25 in)
- Numerically Optimized Design
- 200 V/m Power Handling Capability
- Fire Retardant
- FlexSorb™ option available
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 8.3 cm (24 in x 24 in x 3.25 in) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 4 GHz |
| Standards | NRL 8093 Tests 1,2,3; TI #2693066; MIT MS-8-21; UL 94; DIN 4102-B2 |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
