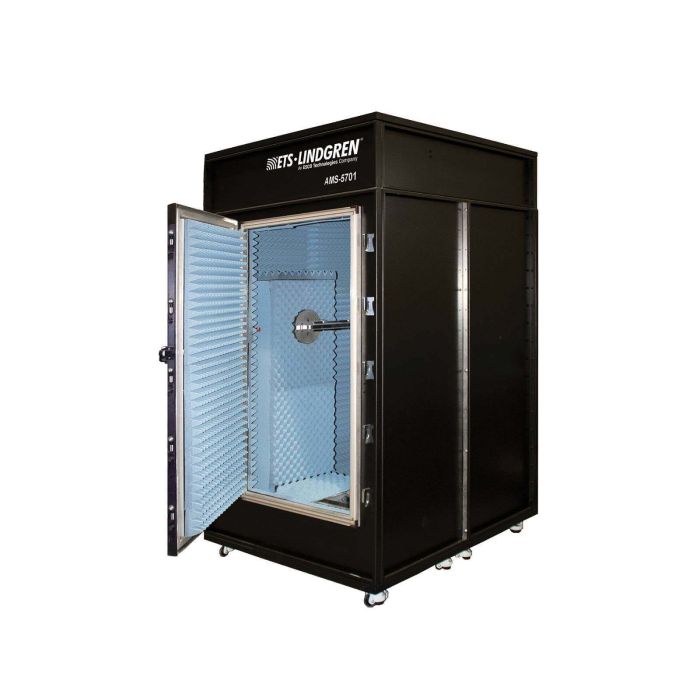

AMS-5701 5G Antenna Measurement System

The AMS-5701 is a distributed-axis spherical-pattern antenna measurement system with a highly flexible application and frequency range from 6 GHz to 67 GHz. It supports both passive and active antenna pattern tests using an easy-to-fixture azimuth base with high accuracy and repeatability, while minimising path losses by placing components close to the measurement antenna.

The chamber features an 82 cm x 144 cm swing door for full internal access and is a roll-in-place design that can move between floors, down hallways, and through standard doorways when the removable ceiling section is unbolted. Well-suited for universities and R&D labs requiring immediate feedback on early designs or revisions.

Key Features:

• 6 GHz to 67 GHz Measurement Frequency Range
• Fixed 75 cm Path Length
• Direct Far-Field (DFF) Measurement
• Dual Polarised Antenna on Theta Arm Positioner
• Azimuth Positioner: 0.05° Accuracy, 0.02° Resolution
• Roll-in-Place Mobile Design with Removable Ceiling
• 80 dB Typical RF Isolation at 40 GHz
• Supports Passive CW and Fully-Modulated Signal Testing
