AMS-5702 MAPS 5G Antenna Measurement System - 5 GHz to 50 GHz

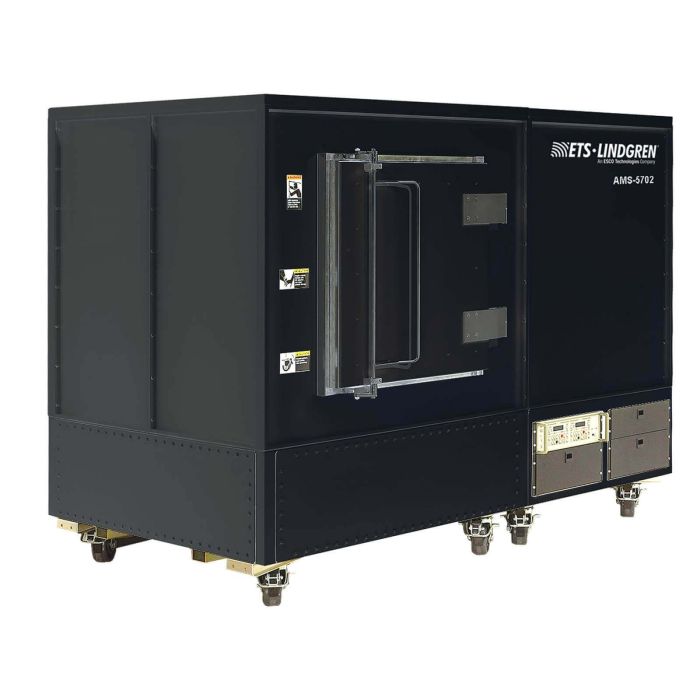

AMS-5702 MAPS 5G Antenna Measurement System
The AMS-5702 is a combined-axis far-field measurement test system providing 3D radiated performance measurements of 5G mmWave wireless devices. It offers precise device positioning with hundredths of a degree resolution and reproducibility, excelling in 5G FR2 "white-box" applications where transmitting antenna characteristics and location are known.
The RF-shielded anechoic enclosure is mobile on wheels for sharing among design groups. A linear slide provides variable path length from 50 cm to 150 cm, allowing optimisation between AUT and probe antenna. Larger antenna arrays benefit from increased path length, while smaller diameters use closer positioning to improve dynamic range. It covers antenna array diameters up to 10 cm at 20 GHz and 7 cm at 44 GHz.
Key Features:
- 5 GHz to 50 GHz Measurement Frequency Range
- Variable Path Length: 50 cm to 150 cm
- Direct Far-Field (DFF) Measurement
- Multi-Axis Positioning System (MAPS) with 0.02° Resolution
- Dual Polarised Measurement Antenna with Laser Alignment
- Mobile RF-Shielded Anechoic Enclosure
- 80 dB Typical RF Isolation at 40 GHz
- Supports Passive CW and Fully-Modulated Signal Testing
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight | 5.0 kg (11.0 lb) |
| Frequency Range | 5 GHz to 50 GHz |
| Shielding effectiveness | 80 dB @ 40 GHz |
| Outer dimensions ( Lx W x H) | 2.5 m x 1.4 m x 1.8 m |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
