LFPRX-3x250-EMP
LFPRX-3x250-EMP
ETS-Lindgren
EMP/HEMP Power Line Filter, 3 x 250 A, 0-277/480 VAC, 50 kA short circuit rating

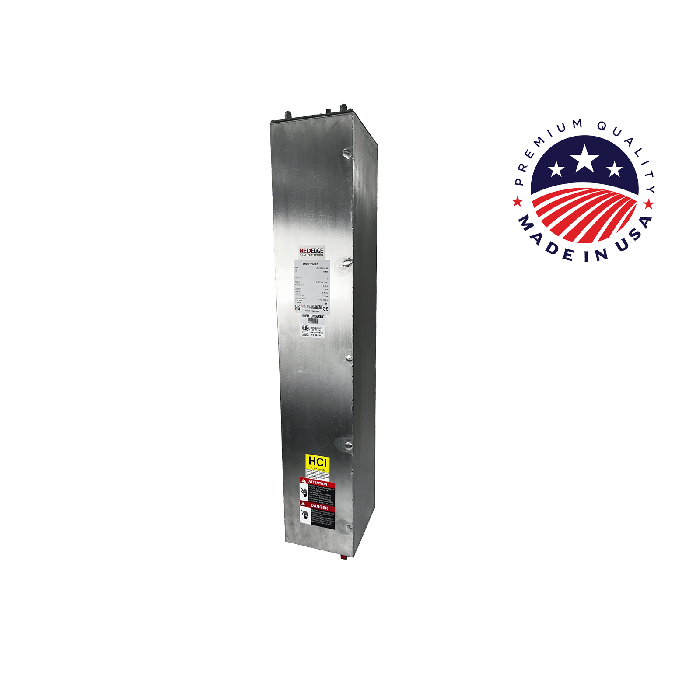

ETS-Lindgren EMP/HEMP Power Line Filter
Excellent multi-stage over-voltage and EMI/RFI protection, designed to meet point-of-entry requirements of MIL-STD-188-125-1 & -2 for Short and Intermediate Pulses.
Key Features:
- High frequency response design
- Reliable transient suppression elements
- Superior insertion loss performance
- Extended filter life with pulse current capability
- Suitable for SCIF, TEMPEST, and military/commercial applications
- Available in single circuit, dual circuit, and multiple line panel configurations
- Custom designs available
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 188.0 cm (74 in) x 99.1 cm (39 in) x 35.6 cm (14 in) (L x W x H) |
| Weight | 231.3 kg (510 lb) |
| Current Rating | 3 x 250 A |
| Configuration |
Individual, Stand-alone Single Circuit Filters (contact factory) |
| Current | 50 kA |
| Standards | MIL-STD-188-125-1, MIL-STD-188-125-2 |
| Power Voltage | 0-277/480 VAC |
| Operating Voltages | 0-277/480 VAC |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
