ETS-Lindgren
LRX Series Dual Line Single Phase Power Line Filter, 2 x 5 A, 0-277/480 VAC, 10 kA short circuit rating

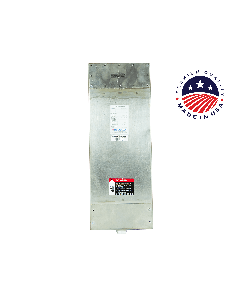

ETS-Lindgren LRX Dual Line Single Phase Filter
Individual, stand-alone dual circuit filter from the LRX series of power line filters. Designed for wall-mounted installation on AC or DC power lines.
Key Features:
- Dual circuit power line filter for two wire AC or three wire AC systems
- Designed for 277 V line-to-ground, 480 V line-to-line, 0 to 60 Hz applications
- 100 dB insertion loss from 14 kHz to 40 GHz per MIL-STD-220
- UL Listed, manufactured to UL-1283
- Meets MIL-F-15733, MIL-STD-220, UL-1283, IEC 60939, LVD standards
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 94.0 cm (37.0 in) x 22.9 cm (9.0 in) x 12.7 cm (5.0 in) (L x W x H) |
| Weight | 27.2 kg (60.0 lb) |
| Current Rating | 2 x 5 A |
| Configuration |
Penetration kit |
| Current | 10 kA |
| Standards | MIL-F-15733, MIL-STD-220, UL-1283, IEC 60939, LVD |
| Insertion Loss | 100 dB from 14 kHz to 40 GHz |
| Power Voltage | 0-277/480 VAC |
| Operating Voltages | 0-277/480 VAC |
