SMART 200 Reverberation Chamber - 200 MHz to 18 GHz (40 GHz)
SMART™ 200 Reverberation Chamber
The SMART 200 provides a compact reverberation environment for immunity, emissions, and shielding effectiveness testing from 200 MHz to 18 GHz (40 GHz optional). It offers lower cost, higher field-to-input power ratios, and high measurement repeatability compared with anechoic methods.

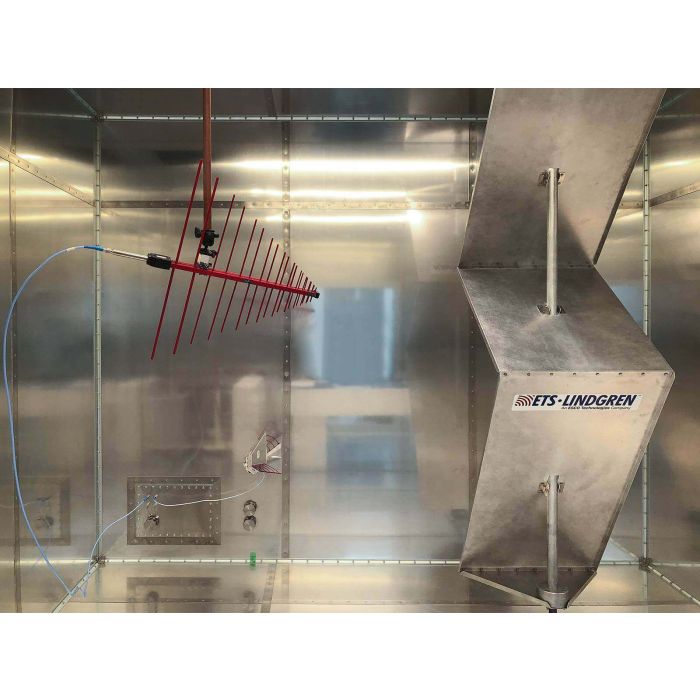

The chamber uses a single 3030 Z-fold tuner with motor drive running 1 to 12 RPM, creating statistically isotropic and homogeneous fields. TILE! software enables automated measurements per SAE J1113/27, GMW3097, MIL-STD-461G, RTCA DO160F/G, and IEC 61000-4-21.
Key Features:
- 200 MHz to 18 GHz (40 GHz Optional)
- Full and Pre-Compliance: MIL-STD-461G, SAE J1113/27, GMW3097, RTCA DO160F/G, Ford FMC 1278, IEC 61000-4-21
- Single 3030 Z-Fold Tuner with 1-12 RPM
- TILE! Automation Software Included
- Compact Footprint
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 200 MHz to 18 GHz (40 GHz) |
| Features |
|
| Immunity Frequency Range | 200 MHz to 18 GHz |
| Emissions Frequency Range | 200 MHz to 18 GHz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
