SMART 80 Reverberation Chamber - 80 MHz to 18 GHz (40 GHz)

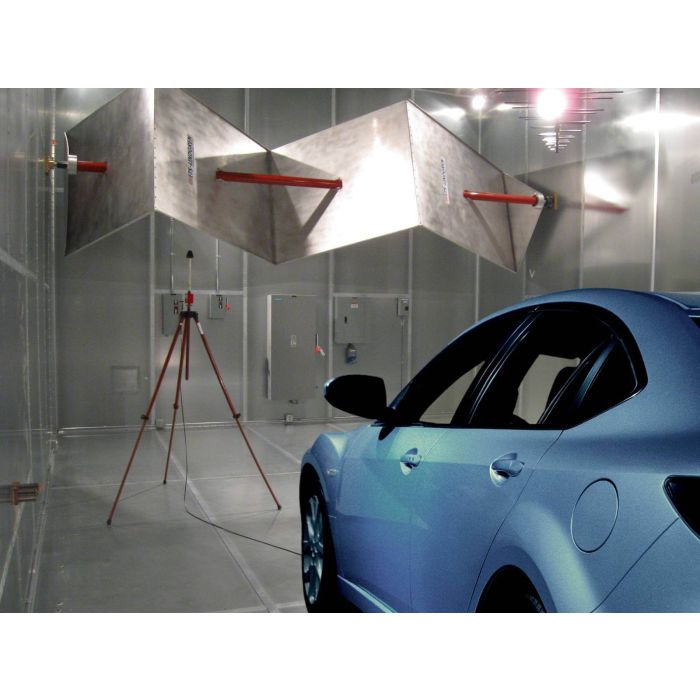

SMART™ 80 Reverberation Chamber
The SMART 80 uses proven reverberation technology to create a suitable electromagnetic environment for immunity, emissions, and shielding effectiveness testing. Compared with anechoic methods, SMART chambers offer lower cost, higher field-to-input power ratios, and the ability to accept large test systems including full vehicles.
Operating from 80 MHz to 18 GHz (40 GHz optional), the chamber uses two 6060 Z-fold tuners with motor drives running 1 to 16 RPM. Statistical isotropy and homogeneity ensure repeatable measurements regardless of EUT position, simulating all wave polarisations and incidence angles during a full test.
Key Features:
- 80 MHz to 18 GHz (40 GHz Optional)
- Full and Pre-Compliance Testing: MIL-STD-461G, SAE J1113/27, GMW3097, FMC-1278, RTCA DO160F/G, IEC 61000-4-21, DEF STAN 5941
- HERO, HIRF, and Shielding Effectiveness Testing
- Dual 6060 Z-Fold Tuners with 1-16 RPM
- Continuous or Stepped Rotation
- Large Working Volume for Vehicle-Sized EUTs
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 80 MHz to 18 GHz (40 GHz) |
| Features |
|
| Immunity Frequency Range | 80 MHz to 18 GHz |
| Emissions Frequency Range | 80 MHz to 18 GHz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
