SMART 800 Dual Reverberation Test Cell - 1 GHz to 18 GHz

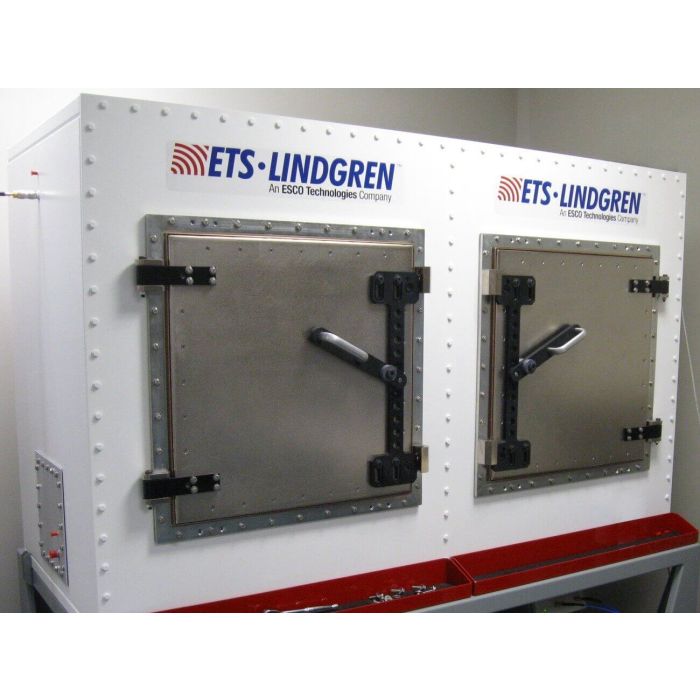

SMART™ 800 Dual Reverberation Test Cell
The SMART 800 Dual consists of two identical chamber cavities separated by a common wall, with >80 dB shielding per cavity and >100 dB between cavities. This portable, self-contained bench-top enclosure is ideal for shielding effectiveness measurement of gaskets and small enclosures per IEC 61000-4-21 and IEEE 1302.
Either cavity can also be configured for standard emissions and immunity testing per RTCA DO160 F/G and MIL-STD-461 F/G. Two vertical tuners are controlled via RS232 and can be operated with TILE! software.
Key Features:
- 1.0 GHz to 18 GHz (40 GHz Optional)
- Dual Cavity Design for Shielding Effectiveness Testing
- >80 dB Shielding per Cavity, >100 dB Between Cavities
- Field Uniformity Better than 3 dB
- Compact Bench-Top, Portable Design
- Testing per IEC 61000-4-21, IEEE 1302, MIL-STD-461E, RTCA DO160 F/G
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz to 18 GHz (40 GHz option) |
| Usable test volume (EUT space available) | 300 mm x 300 mm x 300 mm per cavity |
| Immunity Frequency Range | 1 GHz to 18 GHz |
| Shielding effectiveness | >80 dB per cavity; >100 dB between cavities |
| Outer dimensions ( Lx W x H) | 1.9 m x 1.1 m x 2.0 m (including cart) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
