SMART 800 Single Reverberation Test Cell - 1 GHz to 18 GHz

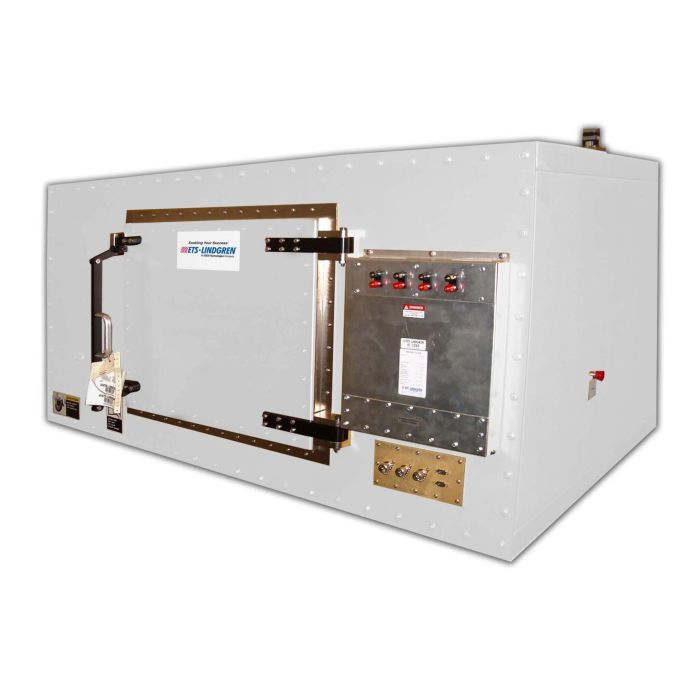

SMART™ 800 Single Reverberation Test Cell
The SMART 800 Single is a bench-top reverberation chamber retaining all the performance features of larger room-sized chambers. Operating from 1 GHz to 18 GHz (extendable to 800 MHz per RTCA DO160F/G and to 40 GHz optionally), it provides a convenient, affordable environment for product design and development.
Two rotating Z-fold paddles create statistically isotropic fields over a 0.5 m x 0.5 m x 0.4 m test volume. Two internally mounted double-ridged horn antennas cover 1-18 GHz, with optional 18-40 GHz horns. Shielding effectiveness exceeds 80 dB at 1 GHz with maximum RF input power of 300 W.
Key Features:
- 1.0 GHz to 18 GHz (800 MHz per DO160, 40 GHz Optional)
- Field Uniformity Better than 3 dB
- Compact Bench-Top Design with Cart
- >80 dB Shielding at 1 GHz, 300 W Max Input
- Two Internal Double-Ridged Horn Antennas Included
- Testing per IEC 61000-4-21, MIL-STD-461E, RTCA DO160 F/G
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz to 18 GHz (800 MHz / 40 GHz options) |
| Max Input Power | 300 W (1-18 GHz) |
| Usable test volume (EUT space available) | 0.5 m x 0.5 m x 0.4 m |
| Immunity Frequency Range | 1 GHz to 18 GHz |
| Shielding effectiveness | >80 dB at 1 GHz |
| Outer dimensions ( Lx W x H) | 1.55 m x 1.26 m x 1.8 m (including cart) |
