2165
2165
ETS-Lindgren
Turntable

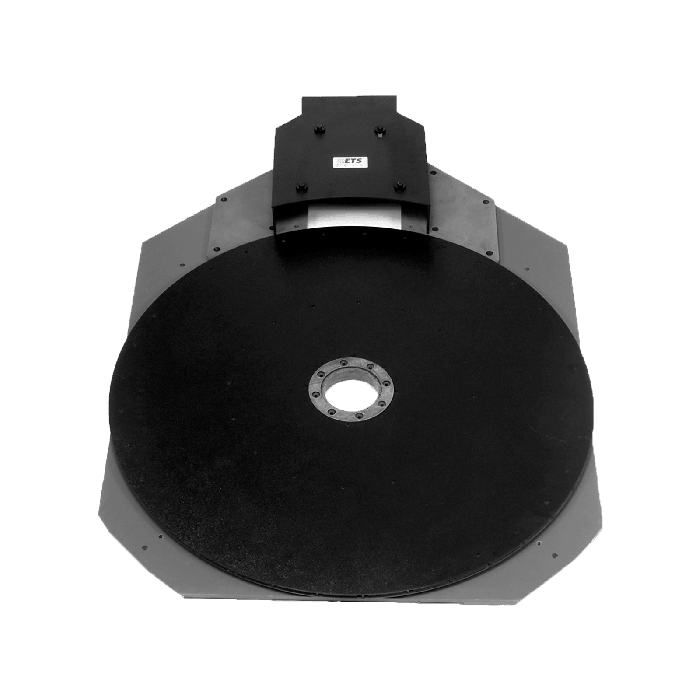

Ultra-Low Profile Motorised Turntable for Space-Constrained EMC Testing
ETS‑Lindgren’s Model 2165 LoPro™ Turntable is ideal for today’s EMC test applications where height is a concern and installation options may be limited. The LoPro Turntable can be used with the popular ETS‑Lindgren EMCenter™ with EMControl™ plug-in card or separate IR remote control.
With a top almost flush to the ground plane, excavating a pit to bury a motorbase assembly is not necessary. The LoPro can be used indoors or outdoors and is portable for maximum utility, easily disassembled within a few minutes. Mounting holes are provided on the base for permanent installation. The one-piece PVC with ABS turntable surface and fibre optic control lines eliminate RF noise.
Key Features:
- Ultra-low Profile: 5 cm (1.97 in) High Platform
- 272 kg (600 lb) Load Capacity
- Fibre Optic Control Lines Eliminate RF Noise
- Variable Speed Motor
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | Turntable Diameter: 1.2 m (3.94 ft); Platform Height: 5 cm (1.97 in) |
| Voltage | 208/230 VAC, 50/60 Hz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
