ETS-Lindgren

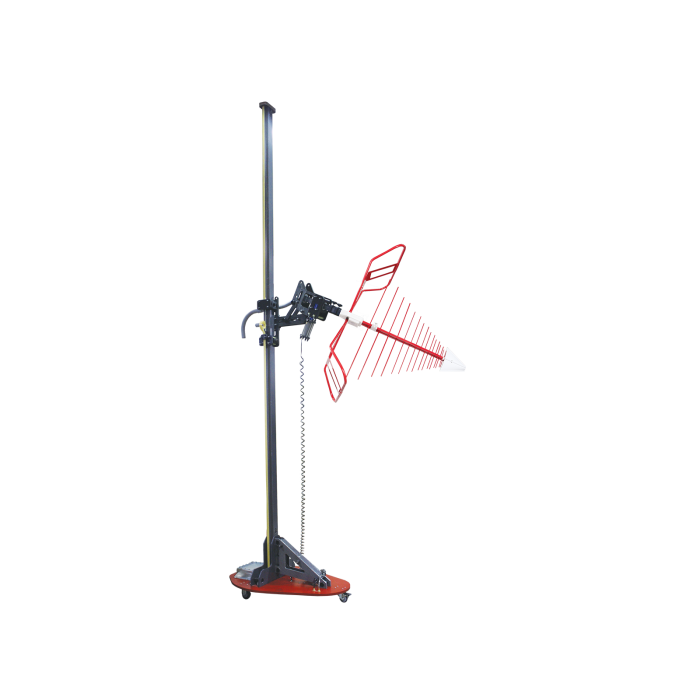

Boresight Antenna Tower
Boresight Antenna Tower for Precision EMC Measurements Above 1 GHz
ETS‑Lindgren’s Model 2171B Antenna Tower meets ANSI C63.4 requirements for measurements above 1 GHz by keeping the antenna aimed at the EUT during the antenna’s ascent/descent along the antenna mast. This is especially useful when high gain directional antennas like horn antennas are used.
ETS‑Lindgren’s innovative boresight system properly aims the antenna at a designed test point. During scans, this tower maintains constant directional antenna positioning while varying the angle between the antenna and the mast. Fibre optic lines are used between the antenna mast and positioning controller to eliminate RF noise coupling, and a toothed belt drive provides a smooth ascent and descent of the carrier assembly. The 2171B is designed for indoor use with a reduced size base for better manoeuvrability in smaller chambers.
Key Features:
- Meets ANSI C63.4 Requirement for > 1 GHz Measurement
- Boresight System for Precise Antenna Aiming
- Fibre Optic Control Lines
- Reduced Size Base for Compact Chambers
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | Overall Height: 4.9 m (16.1 ft); Base: 1.1 m x 0.9 m (3.5 ft x 3.0 ft) |
| Weight | 90.0 kg (198.4 lb) |
| Voltage | 208-230 VAC, 3.0 A, 50/60 Hz |
| Standards | ANSI C63.4 |
| Polarisation | 3°/sec to 30°/sec |
